JGZ – 2.7V 3V Low ESR Radial Snap in Screw Type Super Capacitors
jb Capacitors Company is specialized in producing the Radial, Snap-in, Screw Type Super Capacitors.
jb Radial, Snap-in, Screw Type Super Capacitors is a device which can store electrical energy quickly and discharge slowly. It is new energy storage devices that exhibit such unique features as high capacitance, high power density, and a long cycle. Following are Radial, Snap-in, Screw Type Super Capacitors features, applications, specifications and dimensions. We supply high quality Radial, Snap-in, Screw Type Super Capacitors to you.
Description
Features
- High energy and high power.
- Low ESR.
- Pb-free and RoHS compliant.
Specifications
Specifications
| Series Name | JGZ Series High power type | |
|---|---|---|
| Type Name | JGZ 2R7 | JGZ 3R0 |
| Rated Voltage VR | 2.7V | 3.0V |
| Surge Voltage | 2.85V | 3.15V |
| Capacity Range | 0.1F~3000F | 1F~500F |
| Operating Temperature Range | -40~ +70℃ | -40~ +65℃ |
| Product Life | Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR , Capacity attenuation≤30% , ESR change≤4 times. | |
| High temperature endurance life：Maximum temperature retention VR，1000 hours. Capacity attenuation≤30%, ESR change≤4 times. | ||

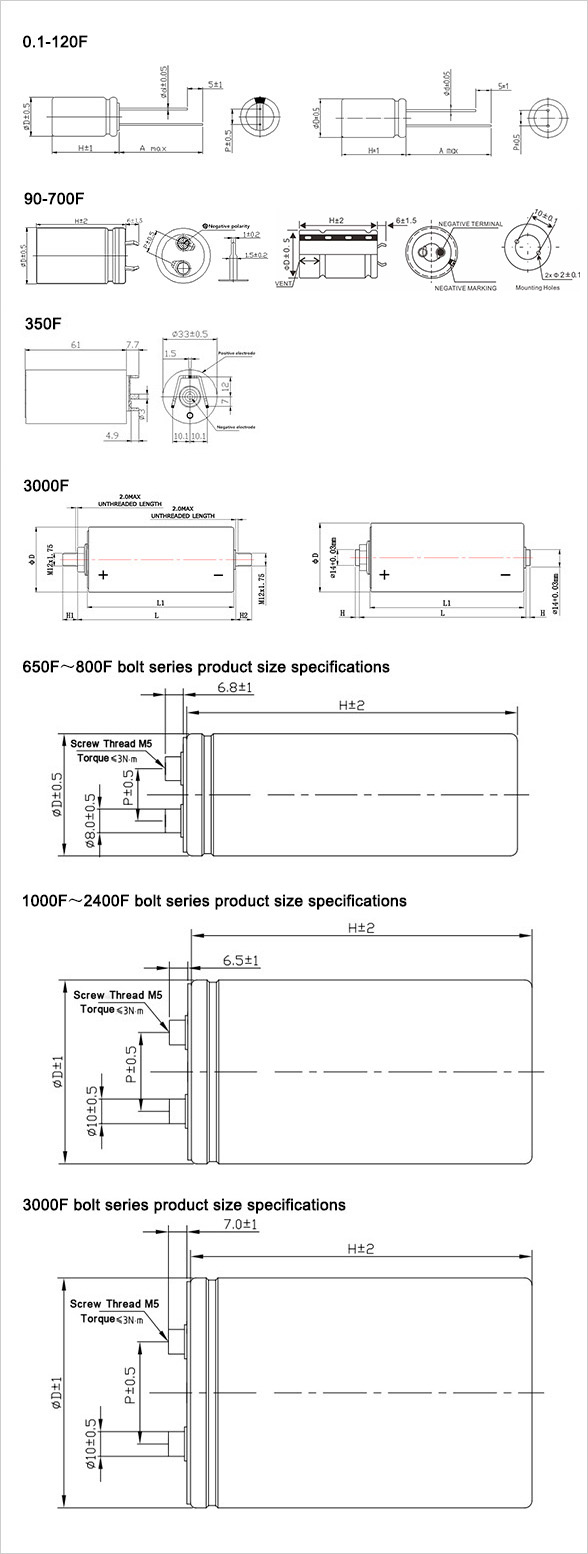

Drawing
Drawing
JGZ - 2.7V 3V Low ESR Radial Snap in Screw Type Super Capacitors
