JGW – 3.8V Radial Type Super Capacitors
jb Capacitors Company is specialized in producing the Standard Coin Type Super Capacitors.
jb Standard Coin Type Super Capacitors Small-sized, large capacity. Following are Standard Coin Type Super Capacitors features, applications, specifications and dimensions. We supply high quality Standard Coin Type Super Capacitors to you.
Description
Features
- The shape of a cylindrical capacitor
- Small-sized, large capacity
Specifications
Specifications
| Operating Voltage Range | 2.5V~3.8V |
|---|---|
| Surge voltage | 4.2V |
| Capacity range | 6.5F~1000F |
| Operating temperature range | -20C~+65C; -20C~+85C (3.5V) |
| Cycle life Expectancy | Normal temperature cycle life: 250,000times. |
| ︱△C/C︱≤30%, ESR≤2 times the specified value |

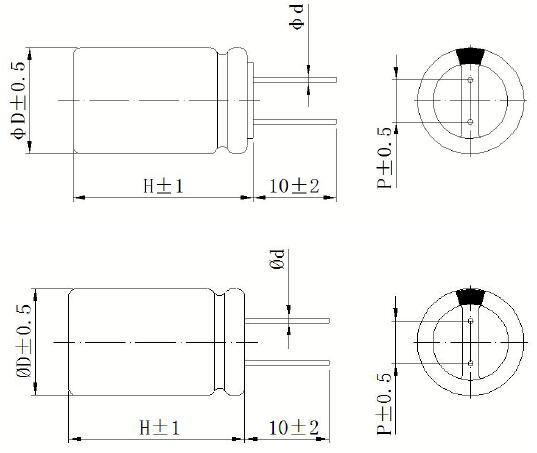

Drawing
Drawing
JGW - 3.8V Radial Type Super Capacitors
