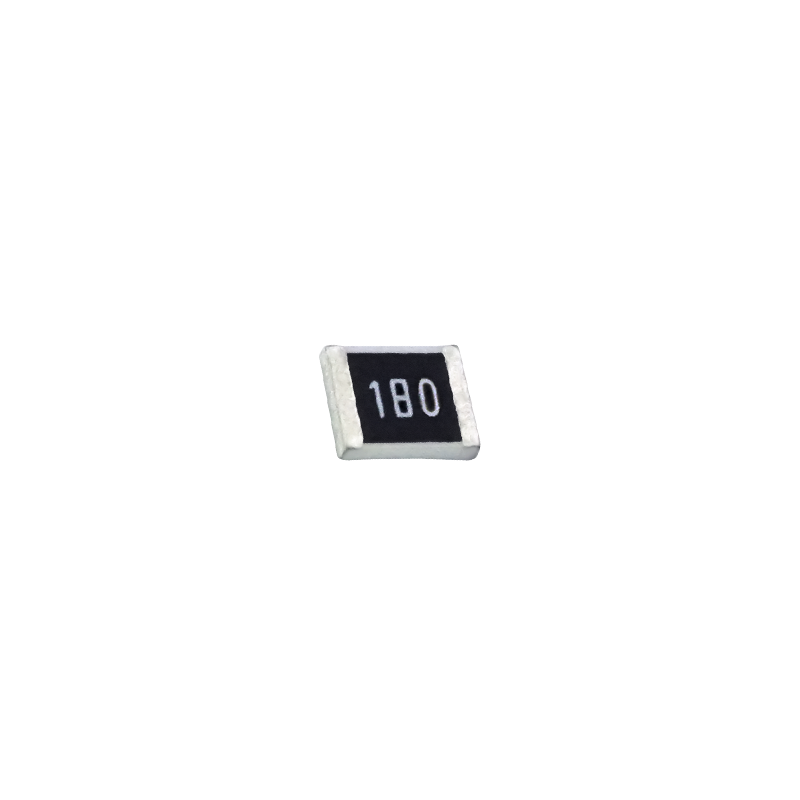

JZP – High Power Thick Chip Resistors
High Power Thick Chip Resistors from jb Capacitors offer high reliability, compact size, and stable performance. The JZP series is ideal for power equipment, consumer electronics, and instruments, featuring moisture resistance, heat tolerance, and RoHS compliance.
Description
Features
- Small size and light weight
- Reliability, high quality
- High Power
Specifications
Specifications
| Power Rating | 1/8W, 1/4W, 1/2W, 1W, 2W |
|---|---|
| Tolerance | ±1%, ±5% |
| Resistance Range | 1Ω ~ 1MΩ |
| Temperature Coefficient | ±100ppm/°C, ±200ppm/°C |
| Max. Working Voltage | 100V ~ 500V (depending on size) |
| Operating Temperature | -55°C ~ +155°C |
| Standard | RoHS Compliant |
