JYA – X1 / Y1 and Y2 AC Safety Standard Recognized Capacitors
jb Capacitors Company is specialized in producing the Class X1 / Y Safety Standard Capacitors. The X1 / Y class safety-certified capacitors, used in line-to-ground (line bypass) applications, have voltages from 400VAC (Y1 series)/300VAC (Y2 series) and X1 series. Major features of these non-polar capacitors include capacitance range generally from 10pF to 10000pF; from 7.5mm to10mm lead spacing, high reliability, and kinked or straight lead configurations.
jb Class X1 / Y Safety Capacitors ideal for across the line applications, compact size, cost effective product, safety standards recognized. Following are JYA – X1 / Y1 and Y2 Safety Standard Recognized Capacitors features, applications, specifications and dimensions. We supply high quality Class X1 / Y Safety Capacitors to you.
Description
Features
- Ideal for across the line applications
- Compact size
- Cost effective product
- Safety standards recognized
Specifications
Specifications
| Operating Temperature | -25°C~ +85°C |
|---|---|
| Capacitance Range | 10pF TO 10000pF |
| Capacitance Tolerance | ±10%, ±20%, +80-20% |
| Rated Voltage | AC 125V, 250V, 300V, 400V |
| Sub-class of safety performance |
CD:X1Y1；CE:X1Y2 |
| Temperature Coefficient | 2B(Y5P)±10%、2E(Y5U)+22%~-56%、2F(Y5V)+22%~-82% |
| Dissipation Factor (tan δ) | 2B: 2.5% max. at 25℃ and 1 KHz, 1±0.2 Vrms. |
| Insulation Resistance at 20℃ | 2E/2F: 2.5% max. at 25℃ and 1 KHz, 1±0.2 Vrms. |
| Dielectric Strength | 10000MΩat 500VDC for 1 minute. 1500V AC for 60 seconds. (250V AC) 4000V AC for 60 seconds. (400V AC) |

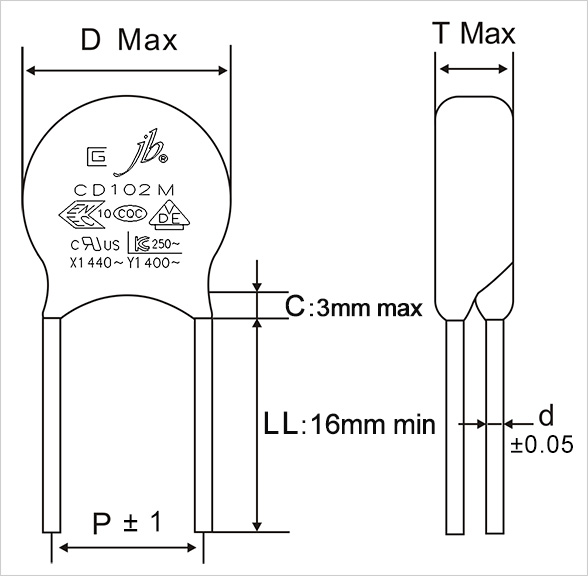

Drawing
Drawing
JYA - X1 / Y1 and Y2 AC Safety Standard Recognized Capacitors
