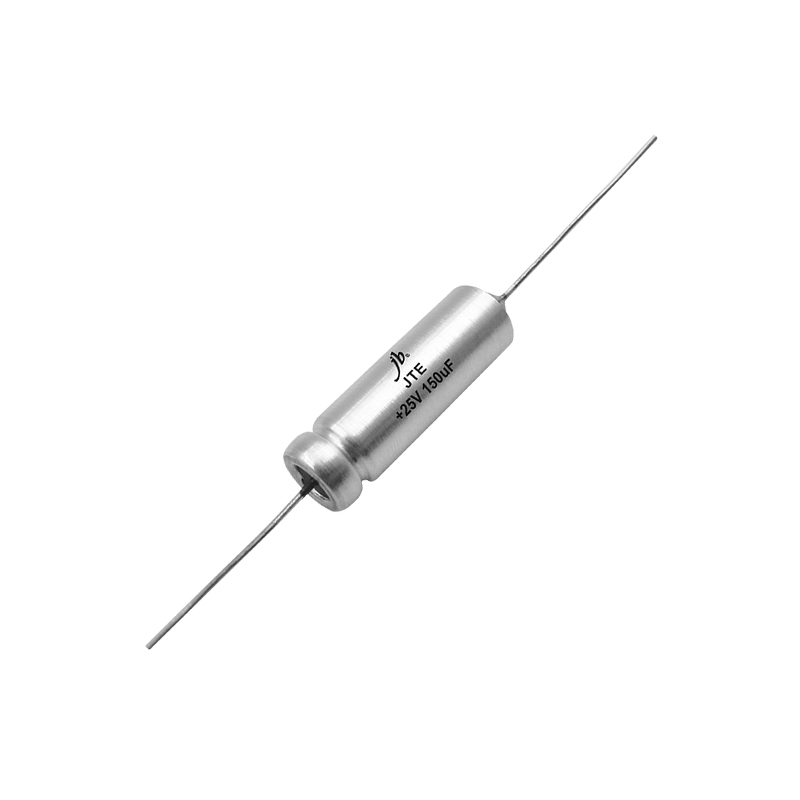

JTE – Axial Wet Tantalum Capacitors
jb Capacitors JTE Axial Wet Tantalum Capacitor with a flame retardant coating and featuring low leakage current and impedance, very small physical sizes and exceptional temperature stability. Standard solid tantalum surface mount chip capacitors, lead frameless molded polymer type. It is designed and conditioned to operate to +125°C and is available loose or taped and reeled for auto insertion.Following are JTE Axial Wet Tantalum Capacitor features, applications, datasheet, specifications and drawing.
Description
Features
- Silver case encapsulation, Epoxy end-filled, Tubular, Axial-lead, with insulation sleeve, Heteropolarity.
- Stable in Electrical Characteristics, High reliability, Long life-span, Low DF & DCL, Small in size for installation.
- Applying in Telecommunications, Instruments and Meters, such Electrical Equipments with DC & Impulse Circuit.
Specifications
Specifications
| Technical Data | All technical data relate to an ambient temperature of +25°C. |
|---|---|
| Capacitance Tolerance | ±20%, ±10% |
| Temperature Range | -55°C to +125°C |
| DC Leakage | I0 ≤ 0.001CRUR (μA) or 1μA (whichever is greater) |
