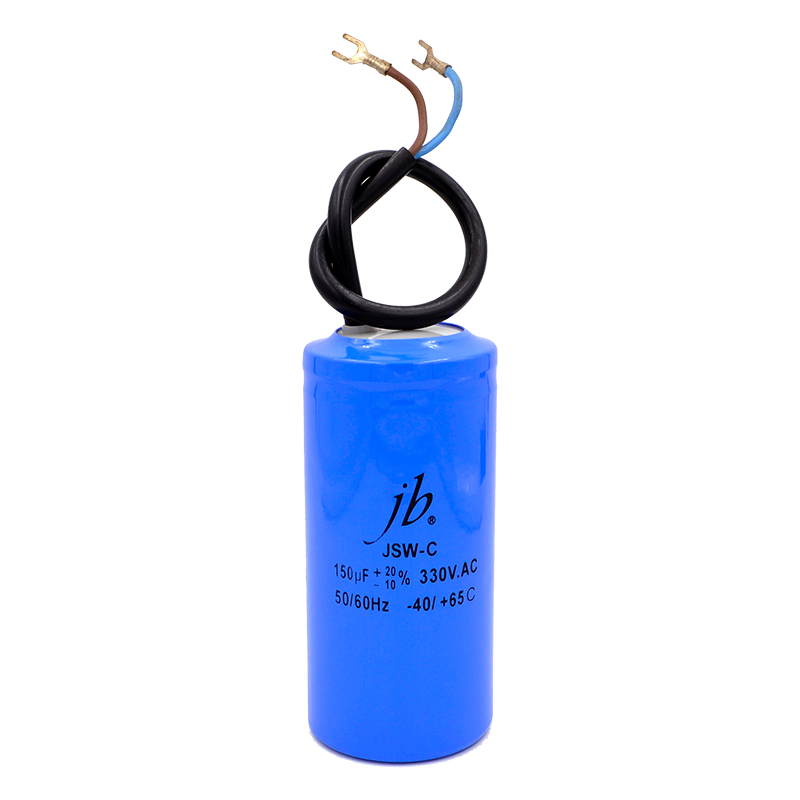

JSW – Motor Starting Capacitors
jb Capacitors manufactures and markets Motor Starting Capacitors, which are widely used for compressor starters in refrigerators and air-conditioners, as well as for water pumps. The following are the features, specifications, and dimensions of the Motor Starting Capacitors.
Description
Features
- Small volume, large capacitance
- Low spoilage, stable capability
- The specific type of capacitors with high electrical characteristics are widely used in single phase A.C. motors with rated voltage of 110V-330V and the frequency of 50Hz-60Hz to Get high rotary torque at low starting current, and also the motor at a lower starting current under high torque.
Specifications
Specifications
| Items | Performance Characteristics |
|---|---|
| Operating Temperature Range (°C) | -40°C~+65°C |
| Rated Voltage | 110~330V,AC |
| Capacitance Tolerance | -10%~+20% |
| Capacitance | 50-1500μF |
| Loss Tangent | 0~+20% |
| Withstand Voltage Between Terminals | 1.2 times working voltage, no break down within 2s |
| Withstand Voltage Between Terminal And Case | 2000VAC, no break down with 60s |
Drawing
