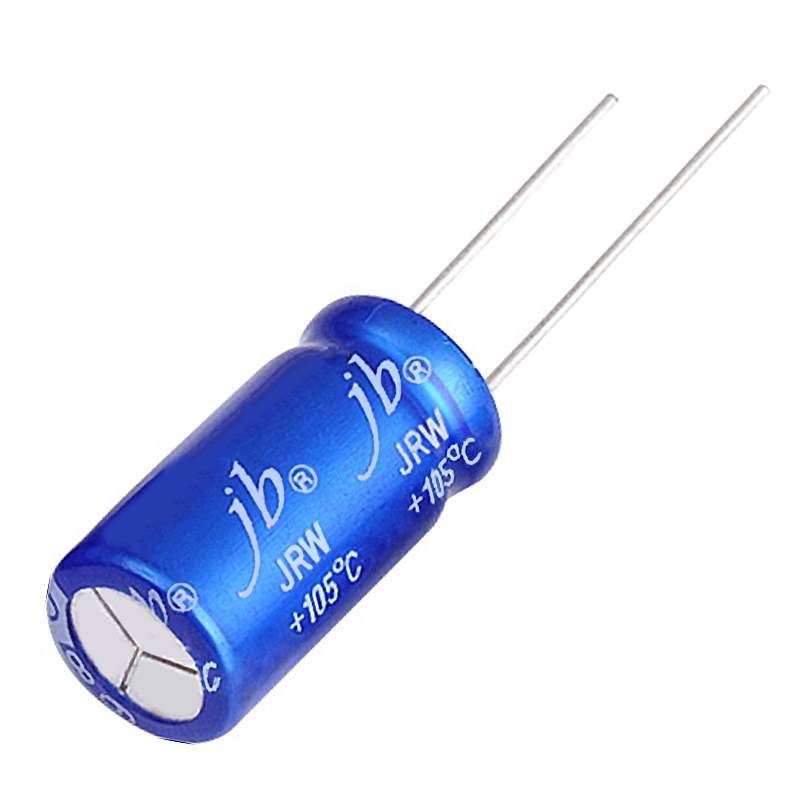

JRW – 2000H at 105°C, Radial Aluminum Elec. Capacitors, Extra Lower Impedance
jb Capacitors manufactures and markets Radial Aluminum Electrolytic Capacitors with a miniaturized size and wide temperature range. The following are the features, specifications, and dimensions of the JRC 2000H at 105°C Radial Aluminum Electrolytic Capacitor. We supply high-quality Radial Aluminum Electrolytic Capacitors to you.
Description
Features
- Load life of 2000 hours at 105°C
- Extra Lower impedance at high frequency and high ripple current
- RoHS Directive Compliant
Specifications
Specifications
| Items | Performance Characteristics |
|---|---|
| Operating Temperature Range (°C) | -40℃~+105℃ |
| Capacitance Tolerance (20°C, 120Hz) | ±20% |
| Leakage Current (μA) | I ≤ 0.01CV or 3 (μA) *Whichever is greater after 3 minutes |
Drawing
