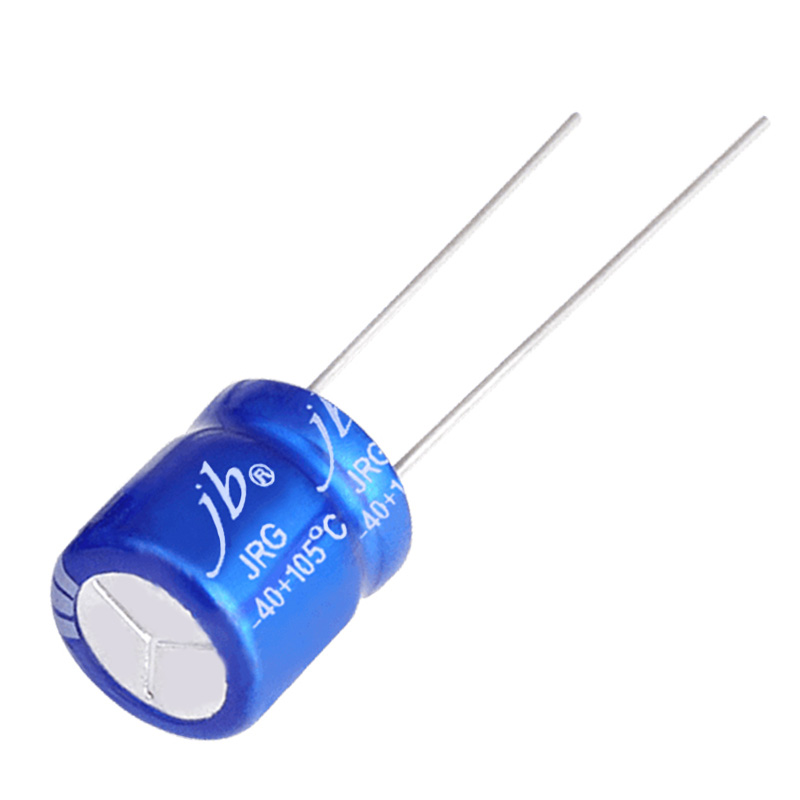

JRG – Long Life at 105°C, Radial Aluminum Elec. Capacitors Extremely Low Impedance
jb Capacitors’ JRG series features long-life radial aluminum electrolytic capacitors rated for 10,000 hours at 105°C. These capacitors combine extremely low impedance and high ripple current capability in a compact size, making them ideal for high-reliability power supply and switching applications.
Engineered for durability and thermal performance, the JRG series is RoHS compliant and suitable for demanding electronic circuits requiring stable operation over extended periods.
Description
Specifications
Specifications
| Items | Performance Characteristics |
|---|---|
| Operating Temperature Range (°C) | -40℃~+105℃ |
| Capacitance Tolerance (25°C, 120Hz) | ±20% at 120Hz, 20℃ |
| Leakage Current (μA) | Leakage current = 0.01CV or 3µA, whichever is greater (after 2 minutes application of rated voltage) |
Drawing
