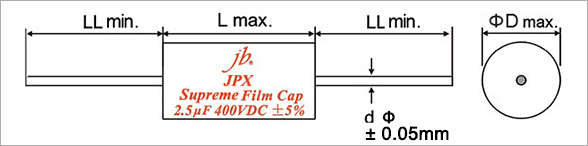

jb Capacitors manufactures Superior Metallized Polypropylene Film Capacitors – Axial type. This high-quality audio film capacitor provides excellent sound quality. jb Capacitors offers low MOQ and competitive prices. The following are the features, specifications, and drawing of Superior Metallized Polypropylene Film Capacitors.
| Passive flammability | GB10191-88 IEC384-16 |
|---|---|
| Operating temperature | -55℃～+85℃ |
| Capacitance range | 0.1~100uF |
| Capacitance tolerance | ±3%(E)、±5%(J) 1KHz |
| Rated voltage | 250V、400V、630V.DC |
| Withstand voltage | 1.6VR 5S |
| Dissipation factor | ≤0.0005 1KHz |
| Insulate the electric resistance | CR≤0.33μF, I.R≥15,000MΩ CR>0.33μF, I.R≥5,000S |
| Leads Diameter | 0.8、1.0 Tinned Copper Wire |
JPX - Supreme Metallized Polypropylene Film Capacitors – Axial (Hot)
