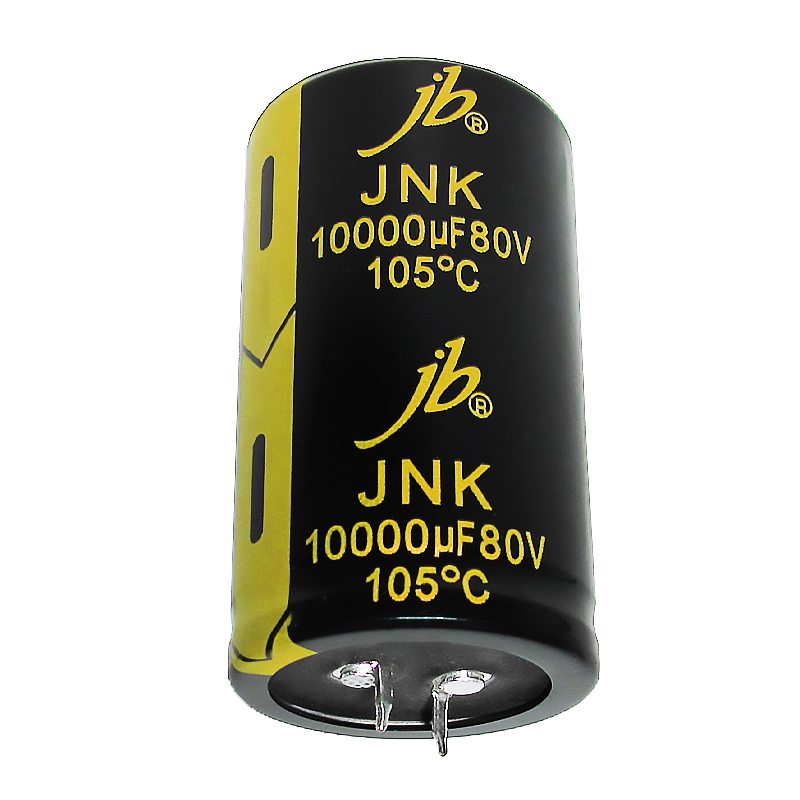

JNK – 5000H at 105°C Snap in Aluminum Electrolytic Capacitors

jb Capacitors manufactures and markets Snap-in Aluminum Electrolytic Capacitors. The following are the features, specifications, and dimensions of the Snap-in Type, 105°C, 5000-hour series. For the JNK series, both 2-pin and 4-pin configurations are available.

Datasheet

Add to wishlist

Add to quote

Description

Features

Extended Lifetime at 105°C
High ripple current
High Professional Switch Mode Power Supplies
Frequency Converters

Specifications

Items	Characteristics
Operating Temperature Range (°C)	-40°C~+105°C	-25°C~+105°C
Voltage Range (V)	10~100	160~450
Capacitance Range (uF)	68~56000
Capacitance Tolerance (20°C, 120Hz)	±20%

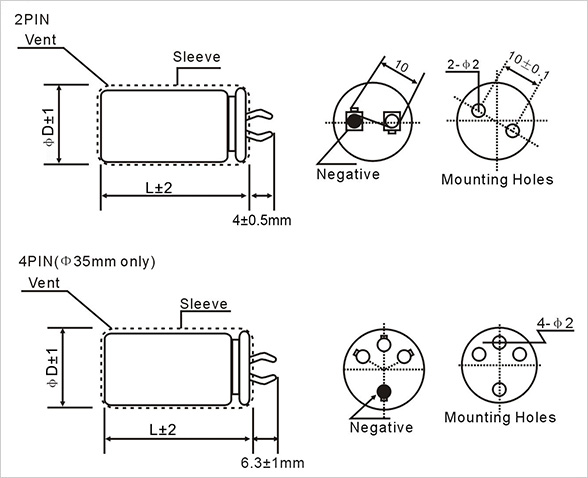

Drawing

dimensions-jnk
