JNA - 1000H at 85°C Snap-in Aluminum Electrolytic Capacitors designed for reliable performance in compact applications, featuring a lifespan of 1000 hours at 85°C. These capacitors are optimized for low impedance and high ripple current capabilities, with voltage ratings ranging from 10V to 400V and capacitance values from 10μF to 2200μF, making them ideal for power supply circuits and various electronic devices.

Click to enlarge

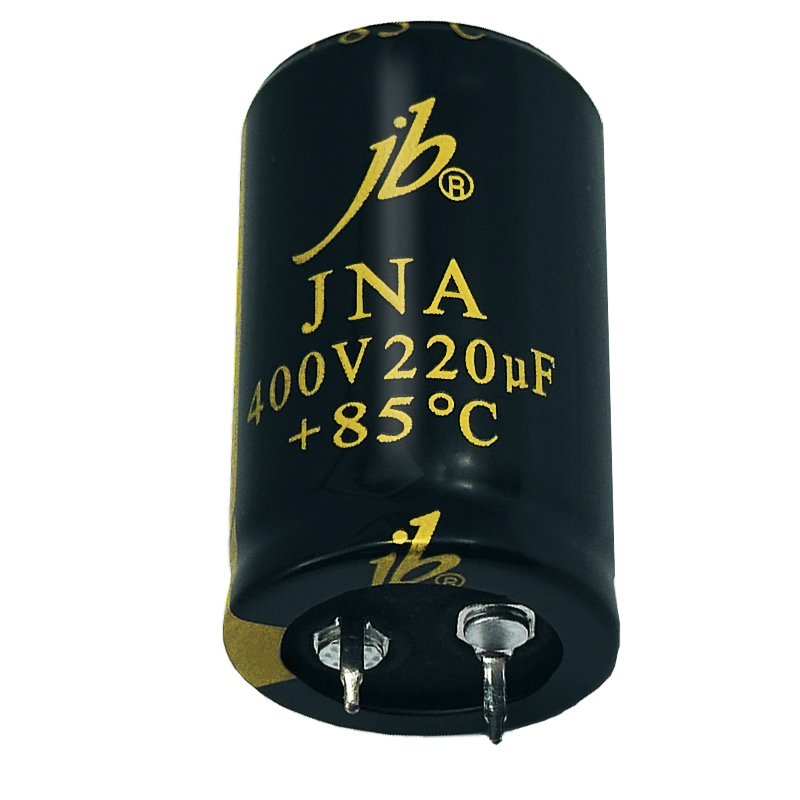

JNA – 1000H at 85°C Snap in Aluminum Electrolytic Capacitors

jb Capacitors manufactures and markets Snap-in Aluminum Electrolytic Capacitors. The following are the features, specifications, and dimensions of the 1000-hour at 85°C Snap-in Aluminum Electrolytic Capacitor. We supply high-quality Snap-in Aluminum Electrolytic Capacitors for speaker networks and other applications.

Add to wishlist

Description

Features

Load life of 1000 hours at 85°C
High ripple current
Smaller size
PCB Mounting

Specifications

Specifications

Items	10V~100V: -40℃+85℃	160V~450V: -25℃~+85℃
Operating Temperature Range (°C)	-40°C~+85°C (450V: -25°C~+85°C)
Capacitance Tolerance (25°C, 120Hz)	±20%
Leakage Current (μA)	0.01CV or 1.5mA whichever is smaller. (at 25°C, after 5 minutes) C: Nominal Capacitance (μF) V: Rated Voltage (V)

Drawing
