JKA – SMD Ceramic Trimmer Capacitors 3mm
jb Capacitors Company Limited designs and manufactures high quality SMD Ceramic Trimmer Capacitors 3mm JKA Series, are miniature and ultra-thin type surface mounting device, and are recommended for miniaturization of electronic equipment. Following are JKA – SMD Ceramic Trimmer Capacitors features, applications, specifications and dimensions. We supply high quality High Voltage Ceramic Capacitors to you.
Description
Features

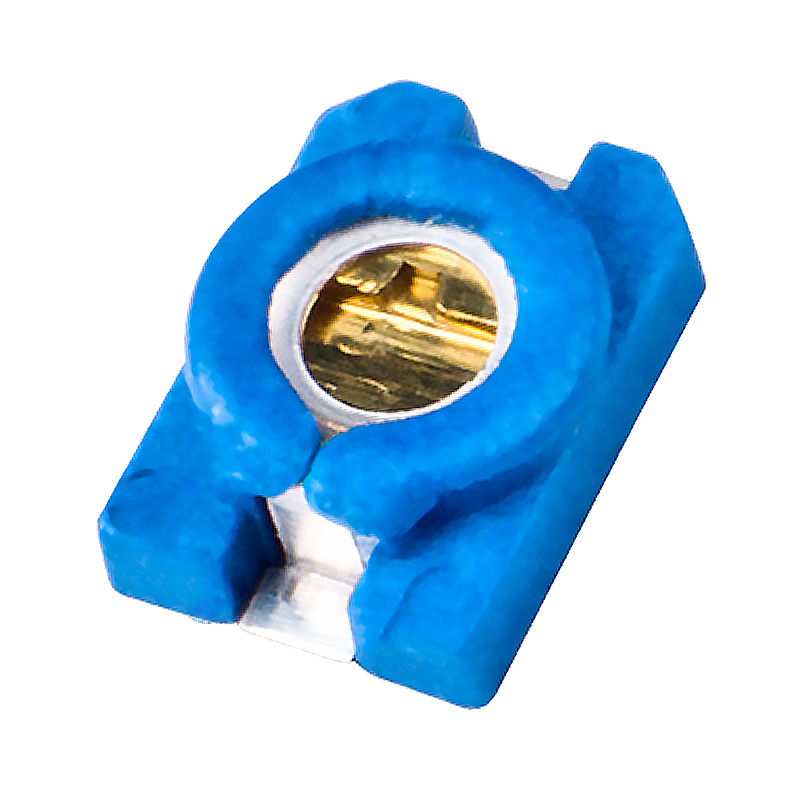

- Ultra miniature size with external dimensions of 3.2(W) x 4.5(L) x 1.5(T)mm
- Color coded case permits easy identification
- Very good Q and high resonant frequency
- Designed for reflow soldering
- Lowest capacitance drift
- Sealed construction prevents the penetration of Flux and Dust
Specifications
Specifications
| Part No / Item | JKA3M03T | JKA3M06T | JKA3M10T | JKA3M20T | JKA3M30T |
|---|---|---|---|---|---|
| 3pF | 6pF | 10pF | 20pF | 30pF | |
| Black | Blue | Ivory | Pink | Green | |
| Capacitance(pF Min) | 1.5 MAX | 2.0 MAX | 3.0 MAX | 5.5 MAX | 8.0MAX |
| Capacitance(pF Max) | 3.0+50-0% | 6.0+50-0% | 10.0+50-0% | 20.0+50-0% | 28.5+50-0% |
| Capacitance Drift (Max) | ±2% | ±2% | ±2% | ±3% | ±3% |
| Temperature Coefficient (ppm/℃) | NPO±300 | NPO±200 | N600±400 | N900±400 | N1300±400 |
| Q Value (at 1 Mhz, C max) | 300min | 500 min | 700 min | 500 min | 250 min |
| DC Working Voltage | 100 VDC | 100 VDC | 100 VDC | 100 VDC | 100 VDC |
| DC Withstanding Voltage | 220 VDC | 220 VDC | 220 VDC | 220 VDC | 220 VDC |
| Insulation Resistance |
104MΩMin
|
||||
| Operating Temperature |
-25℃ to 85℃
|
||||
| Rotation Torque |
15 ~ 72 gf.cm
|
||||
Drawing
Drawing
JKA - SMD Ceramic Trimmer Capacitors 3mm
