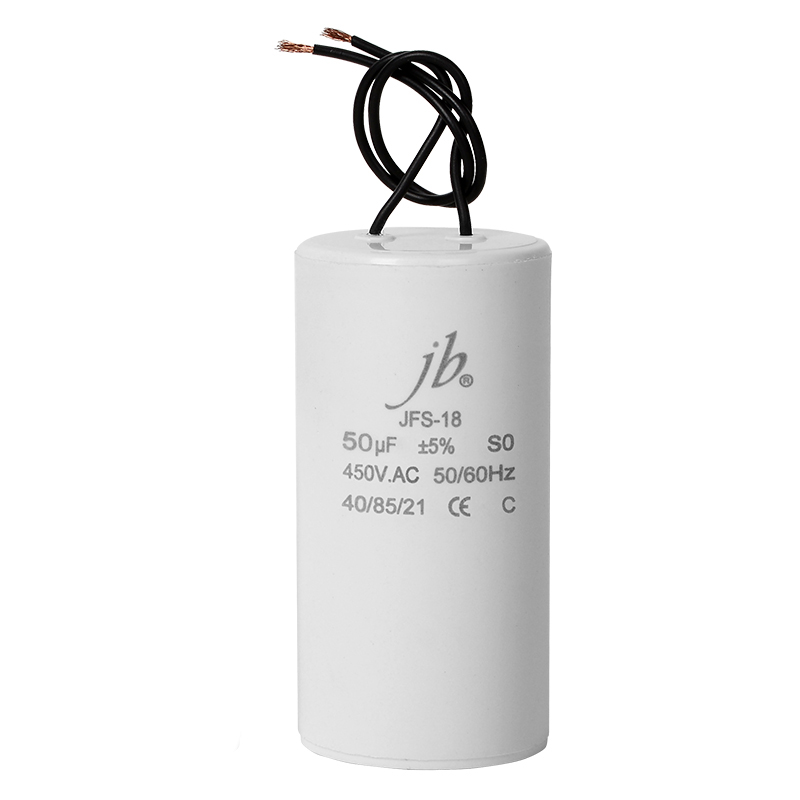

JFS – CBB60 Round Shape and Plastics Case Motor Capacitors
jb Capacitors manufactures the JFS series Motor Capacitors CBB60, which feature a round shape and a plastic case. These capacitors are designed for motor running applications and offer a low dissipation factor, good self-healing characteristics, high insulation resistance, and strong anti-striking current capability. The JFS series provides a voltage range of 250VAC to 450VAC and is highly reliable for applications requiring motor capacitors. Below are the features and specifications of the JFS Motor Capacitors CBB60.
Description
Features
- Low Dissipation Factor (D.F.)
- Good self-healing characteristics
- High Insulation Resistance (I.R.)
- High safety & reliability
- Strong anti-striking current and over-current capacity
Specifications
Specifications
| Operating Condition | -40℃ ~ +85℃ | |
|---|---|---|
| Capacitance Range | 1μF ~ 100μF (JFS-10~21) | |
| Capacitance Tolerance | ±5% (J), ±10% (K) | |
| Rated Voltage | 250V, 450V (AC) | |
| Withstand Voltage Test |
|
|
| Dissipation Factor | ≤0.004 (100Hz, JFS-10~21) | |
| Insulation Resistance | ≥3000S | |
