JFQD - Double Sided Box Type Met Polypropylene Film Capacitors

JFQD – Double Sided Box Type Met Polypropylene Film Capacitors

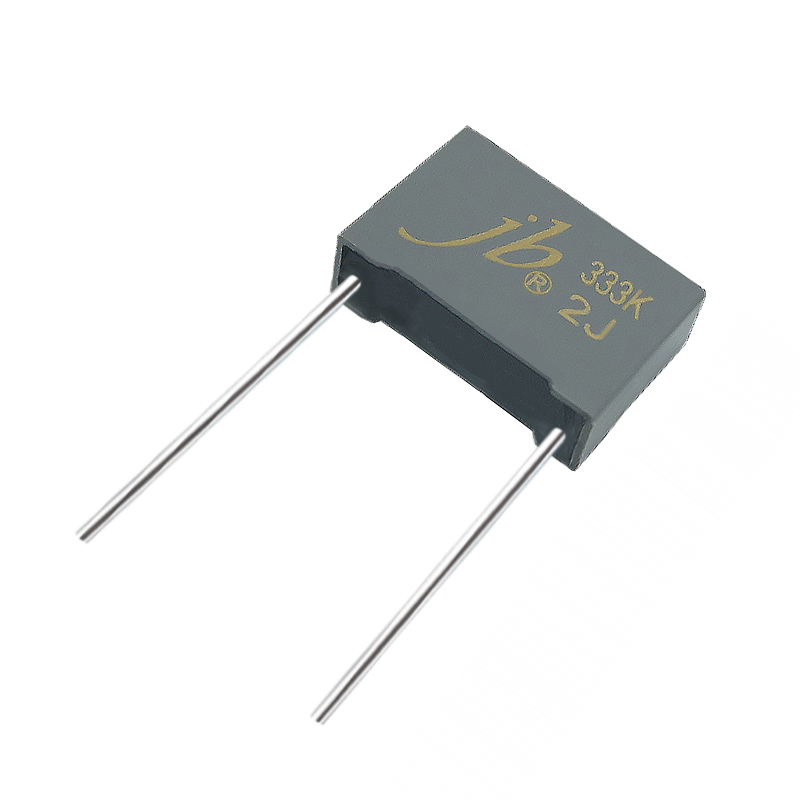

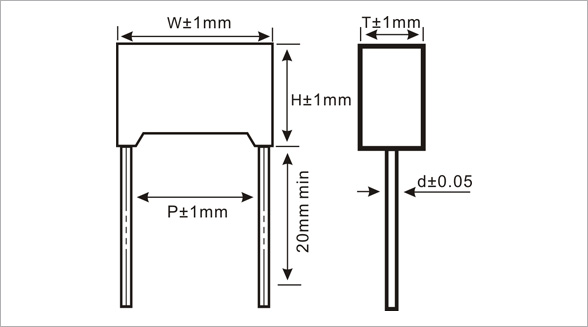

jb Capacitors manufactures Double Sided Box Type Met Polypropylene Film Capacitors, with a wide capacitance range from 0.001 to 0.068 µF and high capacitance precision. The JFQD series provides a wide voltage range from 630 VDC to 2000 VDC, making this series a Box Type High Voltage Metallized Polypropylene Film Capacitor. Due to its double-sided metallized structure, the JFQD Double Sided Box Type Met Polypropylene Film Capacitor is widely used in high voltage, high frequency, and pulse circuits. The following are the features, specifications, and drawing of the Double Sided Box Type Met Polypropylene Film Capacitors.

Description

Features

Double sided metallized polypropylene structure
Low loss and small inherent temperature rise
Excellent active and passive flame resistant abilities.
Negative temperature coefficient of capacitance

Specifications

Reference Standard	GB/T14579 (IEC 60384-17)
Operating Temperature Range	-40°C~ +85°C
Rated Voltage	630V, 1600V, 2000V.DC
Capacitance Range	0.001 ~ 0.068μF
Capacitance Tolerance	±5%(J), ±10%(K)
Voltage Proof	1.75UR (5s), Charge current ≤50mA
Dissipation Factor	≤0.0010 (1KHz, 20°C)
Insulation Resistance	C≤0.33, IR≥50000MΩ C>0.33µF, IR≥15000S (MΩ/µF)	(20°C, 100V, 1min)
