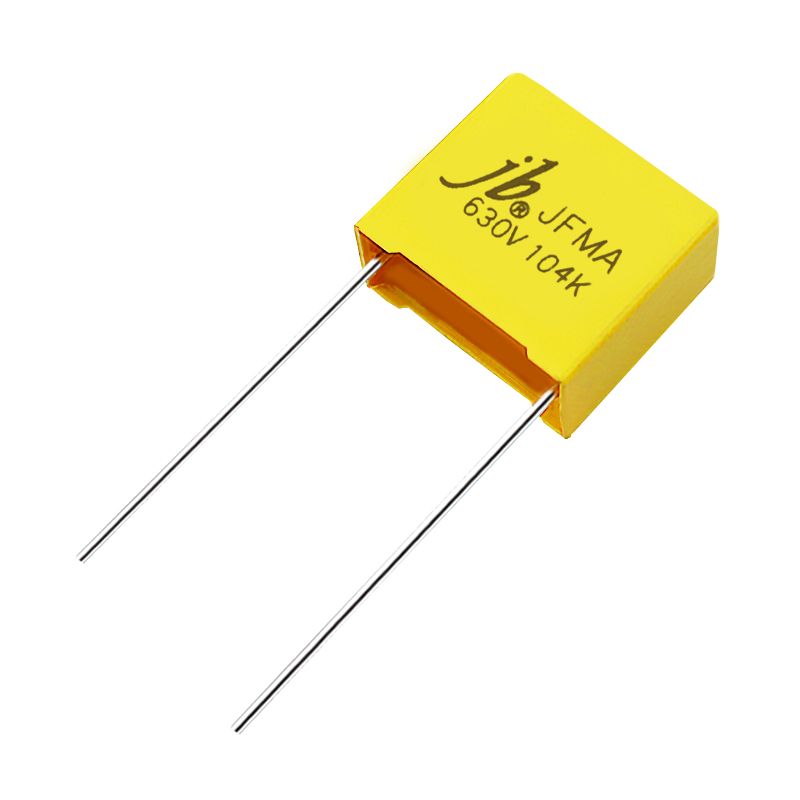

JFMA - Box Type Metallized Polypropylene Film Capacitors For Capacitive Divider

JFMA – Box Type Metallized Polypropylene Film Capacitors For Capacitive Divider

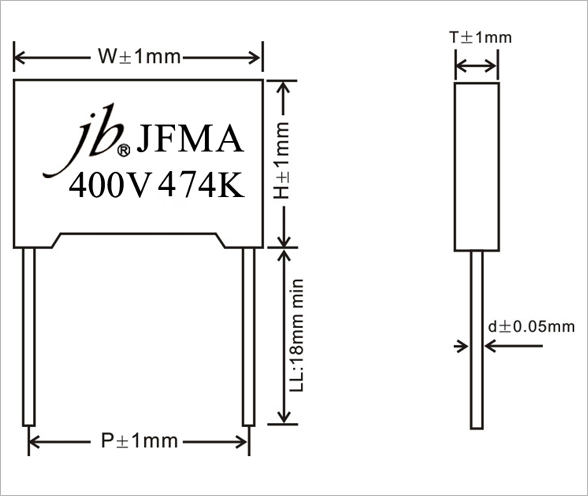

jb Capacitors manufactures Box Type Metallized Polypropylene Film Capacitors for Capacitive Dividers. Suitable for applications in series with the 100~240Vac mains, such as energy meters, small power LED driver modules, small household electrical appliances control panels (electric kettle, electric cooker, coffee machine, hair straightener, etc.), thermostats, and replacing transformers. Widely used in LC resonant circuits, high-frequency, high-current situations. The following are the features, specifications, and drawing of our Box Type Metallized Polypropylene Film Capacitor JFMA.

Description

Features

Metallized polypropylene film, non-inductive wound construction.
Good self-healing properties, withstanding surge voltage stressing.
Long stability of capacitance.
Good properties in damp environment.
Excellent active and passive flame resistant abilities.

Specifications

Operating Temperature	-40°C~ +105°C
Rated Voltage	400V(230VAC)、630V(275VAC/305VAC/310VAC)
Capacitance Range	0.0047 ~ 3.9μF
Capacitance Tolerance	±5%, ±10%
Insulation Resistance	C≦0.33μf ; IR≥50000MOhm C>0.33μF ; IR≥15000MOhm
Dissipation Factor	0.1% max. at 1KHz, 20°C
Dielectric Strength	160% of rated voltage for 60 sec.
