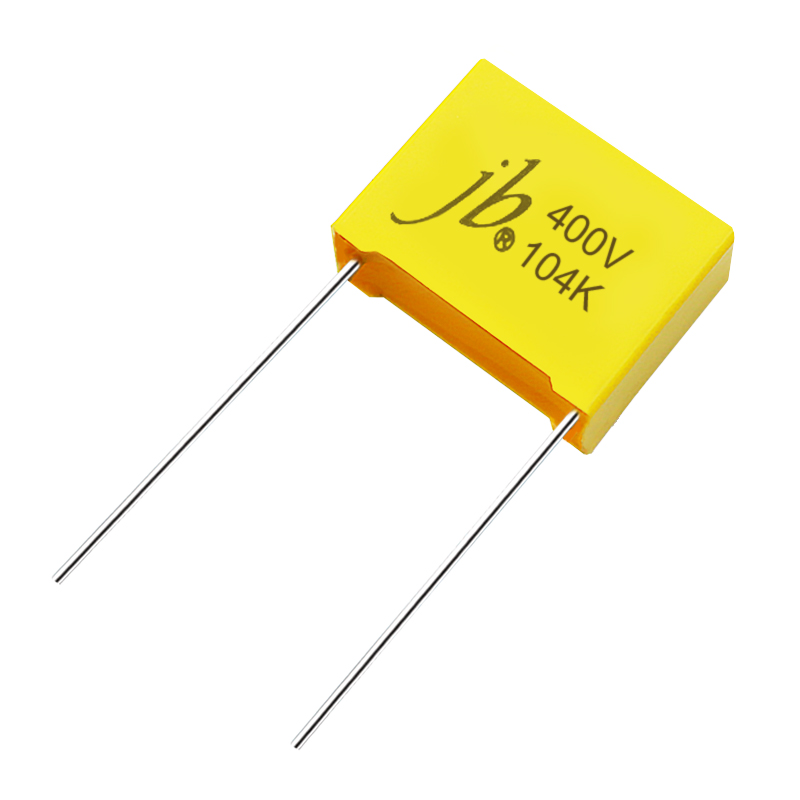

JFM - Box Type Metallized Polypropylene Film Capacitors

JFM – Box Type Metallized Polypropylene Film Capacitors

jb Capacitors manufactures Box Type Metallized Polypropylene Film Capacitors. The JFM series is attractive due to its high capacitance stability and box-type appearance. We offer high-quality Box Type Metallized Polypropylene Film Capacitors at very competitive prices. The following are the features, specifications, and drawing of our Box Type Metallized Polypropylene Film Capacitor JFM series.

Description

Features

High reliability at high current stress.
Self-healing properties.
Flame retardant plastic case and epoxy resin.
Low losses, high dv / dt capability.
High moisture resistance.
High stability of capacitance and long life.

Specifications

Operating Temperature	-40°C~ +85°C
Rated Voltage	250V, 400V, 630V.DC
Capacitance Range	0.0047 ~ 3.9μF
Capacitance Tolerance	±5%, ±10%
Insulation Resistance	C≦0.33μf ; IR≥50000MOhm C>0.33μF ; IR≥15000MOhm
Dissipation Factor	0.1% max. at 1KHz, 20°C
Dielectric Strength	160% of rated voltage for 60 sec.

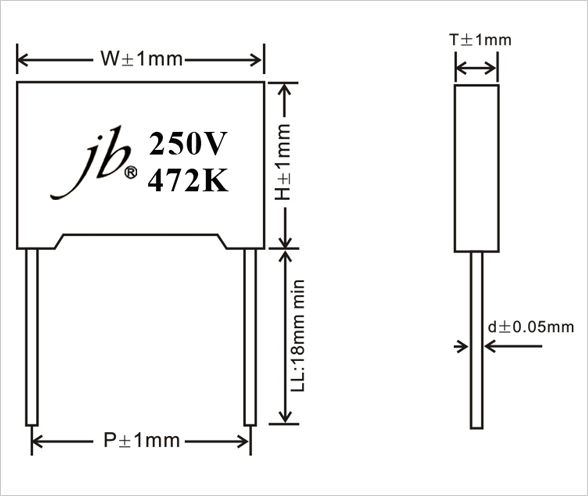

Drawing

JFM - Box Type Metallized Polypropylene Film Capacitors

JFM – Box Type Metallized Polypropylene Film Capacitors

Features

Specifications

Drawing

JF1L – IGBT Snubber Capacitors

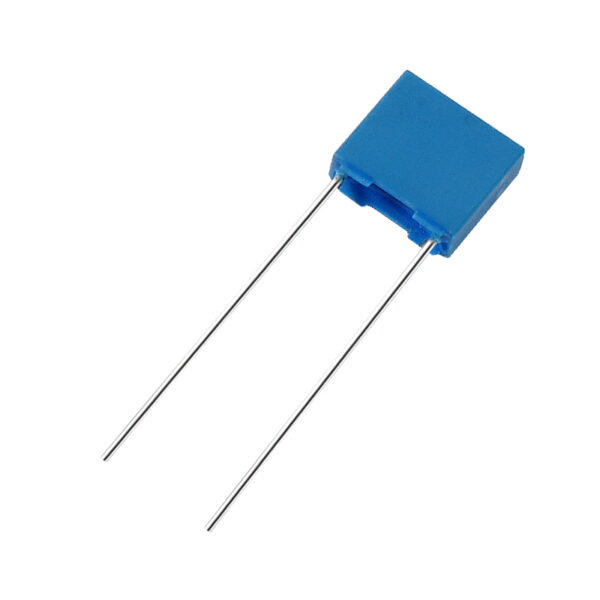

JFF – Mini Box Metallized Polyester Film Capacitors

JFQ – High Voltage Box Type Metallized Polypropylene Film Capacitors

JFQD – Double Sided Box Type Met Polypropylene Film Capacitors

JFT – Metallized Polypropylene Film AC Capacitors Class-X1

JFMA – Box Type Metallized Polypropylene Film Capacitors For Capacitive Divider

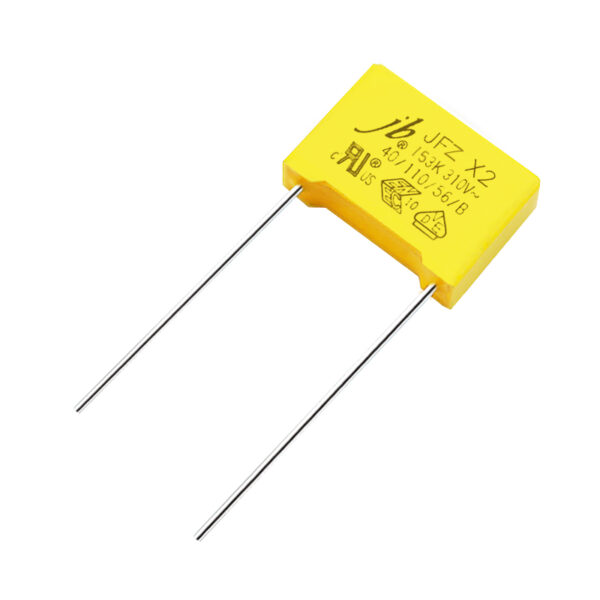

JFZ – X2 Metallized Polypropylene Film Capacitors (310VAC)

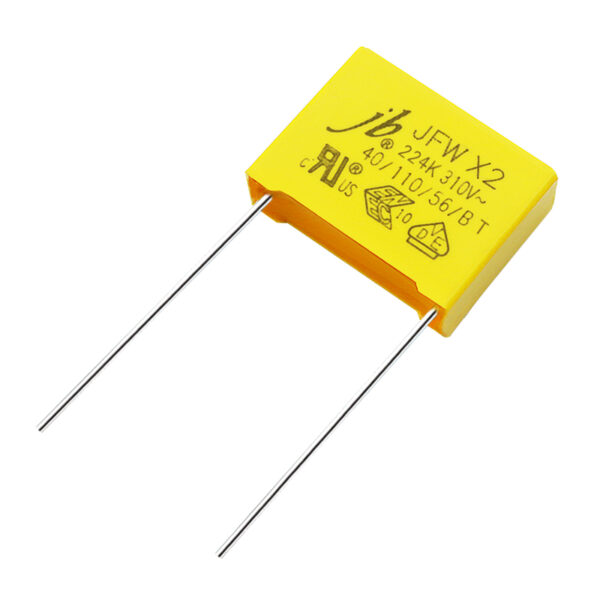

JFW – X2 Metallized Polypropylene Film Capacitors (310VAC)
