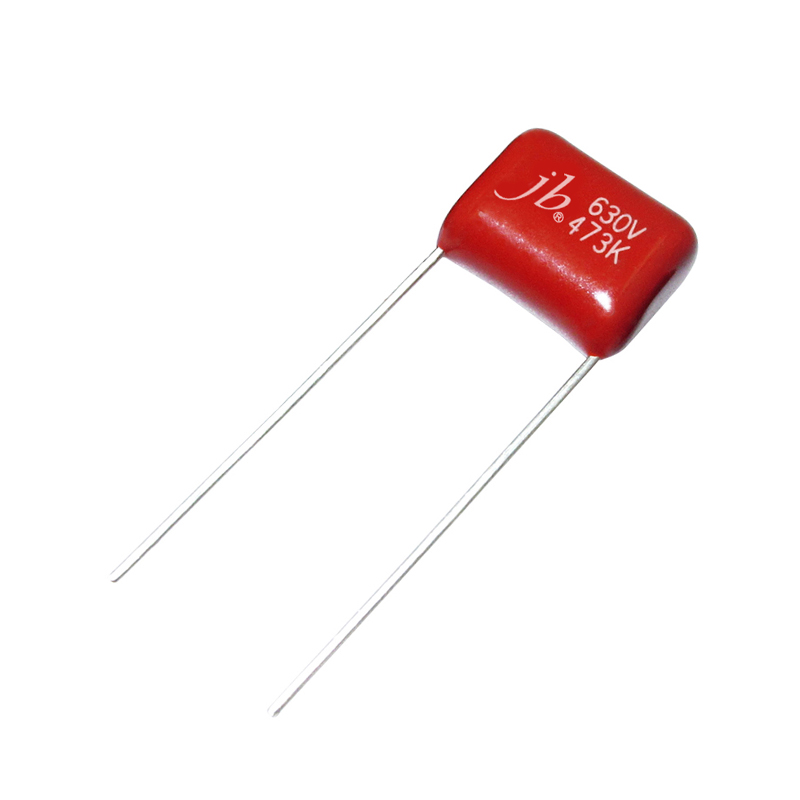

JFL – Metallized Polypropylene Film Capacitors
jb Capacitors manufactures Metallized Polypropylene Film Capacitors. The JFL series is the most common polypropylene capacitor, featuring an epoxy coating that provides high reliability due to its excellent self-healing performance. jb Capacitors offers Metallized Polypropylene Film Capacitors at very competitive prices. The following are the features, specifications, and drawing of our Metallized Polypropylene Film Capacitors.
Description
Features
- Non-inductive, epoxy dip coated, high moisture resistance.
- Dissipation factor is normally low and it is stable against high frequency and change of temperature.
- Recommended for high-frequency circuits like s-curve compensating circuit.
- High reliability because of its excellent Self-Healing performance.
Specifications
Specifications
| Operating Temperature | -40°C~ +85°C |
|---|---|
| Rated Voltage | 100V(2A), 250V(2E), 400V(2G), 630V(2J). |
| Capacitance Range | 0.01 ~ 10.0μF |
| Capacitance Tolerance | ±5%, ±10%, ±20% |
| Insulation Resistance | UR>100V C≤0.33uF IR ≥25000MΩ, C>0.33uF IR ≥7500s UR≤100V C≤0.33uF IR ≥12500MΩ,C>0.33uF IR ≥3750s |
| Dissipation Factor | ≤0.001 at1KHz (Typical 0.002 Max) |

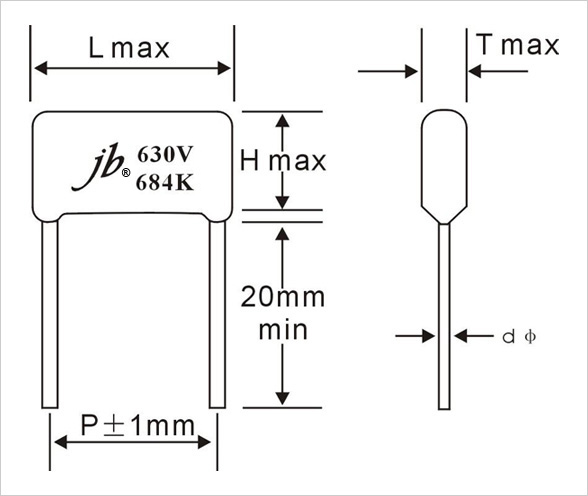

Drawing
Drawing
JFL - Metallized Polypropylene Film Capacitors
