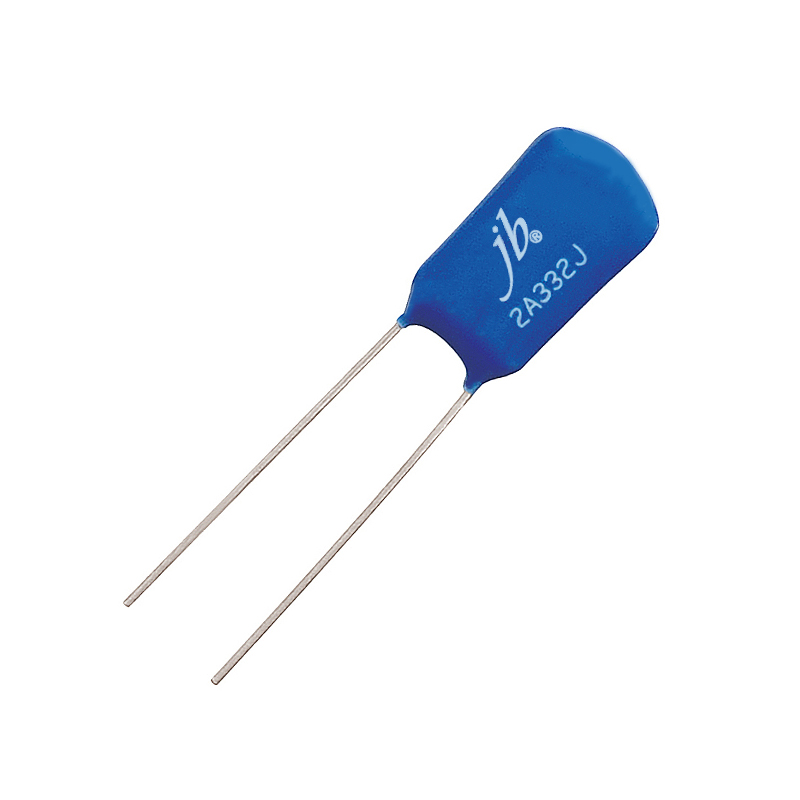

JFK - Polypropylene Film Capacitors

JFK – Polypropylene Film Capacitors

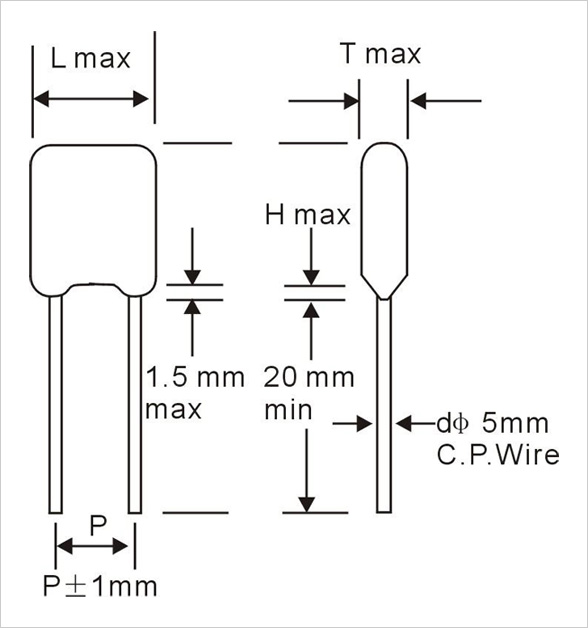

jb Capacitors manufactures Polypropylene Film Capacitors and sells them at very competitive prices. The small size of Polypropylene Film Capacitors saves space on printed circuit boards, and the dissipation factor is typically low. The following are the features, specifications, and drawing of Polypropylene Film Capacitors.

Description

Features

Inductive, radial lead welded construction, epoxy coated.
Temperature dependence indicates characteristic of negative.
Comparatively small size saves space of print circuit board.
Dissipation factor is normally low and temperature dependence of capacitance is linear.

Specifications

Operating Temperature	-40°C ~ +85°C
Rated Voltage	100V, 250V, 400V, 630V.DC
Capacitance Range	0.00047 ~ 0.18 μF
Capacitance Tolerance	±5%, ±10%
Insulation Resistance	50,000MΩ min
Dissipation Factor	≤0.001 for C≤0.068Mfd ≤0.002 for C≤0.068Mfd (at 1KHz)
Dielectric Strength	250% of rated voltage for 5 sec.
