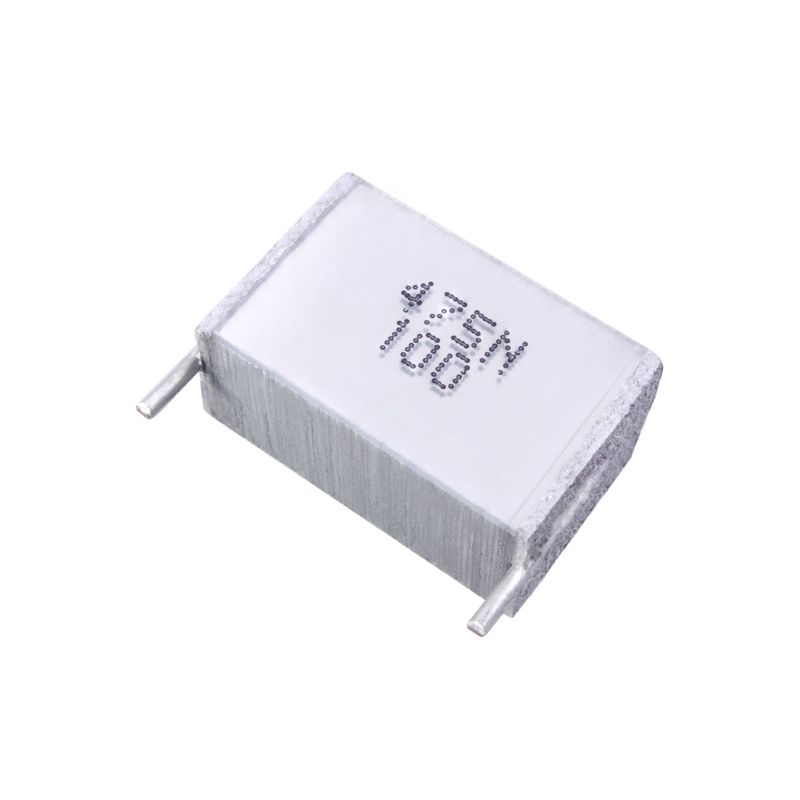

JFI – Uncoated Metallized Polyester Film Capacitor (Stacked version)
jb Capacitors manufactures Uncoated Metallized Polyester Film Capacitors, JFI. The JFI series features a stacked construction with high impulse and pulse strength. The following are the features, specifications, and drawing of Uncoated Metallized Polyester Film Capacitors. We supply high-quality Uncoated Metallized Polyester Film Capacitors suitable for advanced electronic applications.
Description
Features
- Metallized Polyester Film, Stacked construction, Uncoated
- High impulse and pulse strength
Specifications
Specifications
| Operating Temperature | -55°C ~ +125°C |
|---|---|
| Rated Temperature | 85°C |
| Climatic Category | 55/125/56 |
| Rated Voltage | 63V, 100V, 250V, 400V, 630V, 1000V |
| Capacitance Range | 0.0010μF to 10.0μF |
| Capacitance Tolerance | ±5% (J), ±10% (K), ±20% (M) |
| Voltage Proof | 1.40UR (2s) |
| Dissipation Factor | - ≤1.0% (1kHz, CN ≤ 0.1μF) - ≤1.5% (10kHz, CN ≤ 0.1μF) - ≤3.0% (100kHz, CN ≤ 0.1μF) |
| Insulation Resistance (I.R.) | - UR ≤ 100V: ≥3750MΩ, CN ≤ 0.33μF; ≥1250s, CN > 0.33μF - UR > 100V: ≥7500MΩ, CN ≤ 0.33μF; ≥2500s, CN > 0.33μF (Test Condition: 20°C, 1 min) |

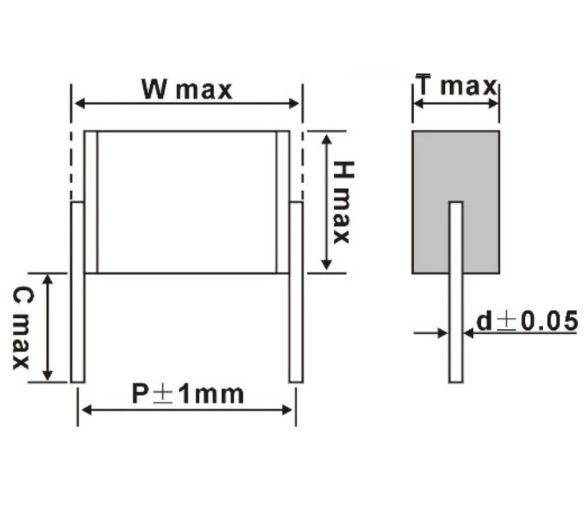

Drawing
Drawing
JFI - Uncoated Metallized Polyester Film Capacitor (Stacked version)
