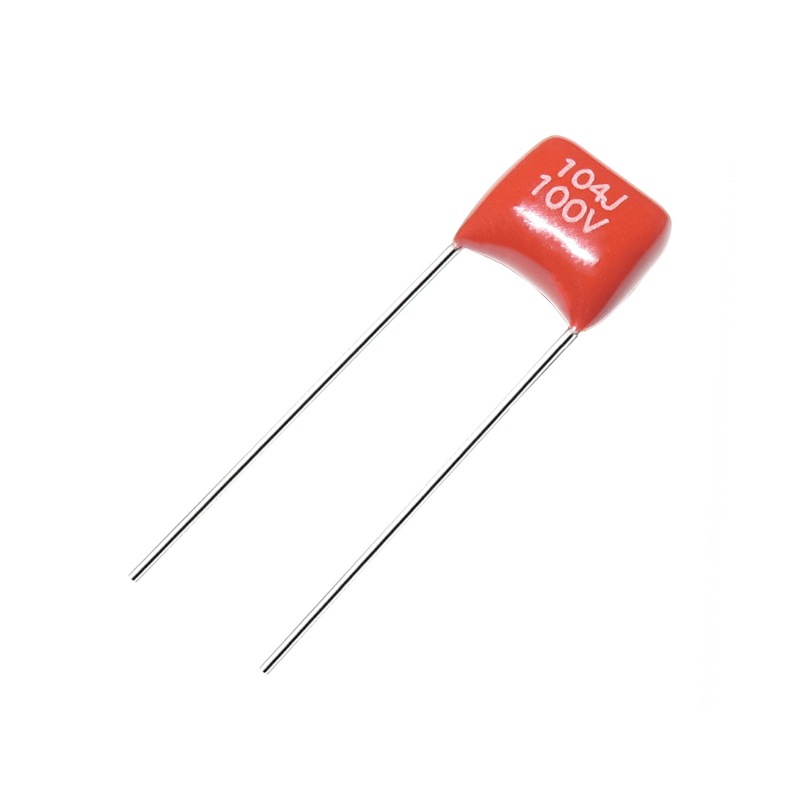

JFH – Subminiature Size Metallized Polyester Film Capacitors
jb Capacitors manufactures Subminiature Size Metallized Polyester Film Capacitors, JFH. The JFH series has a very small size with high performance and efficiency. The following are the features, specifications, and drawing of Subminiature Size Metallized Polyester Film Capacitors. We supply high-quality Subminiature Size Metallized Polyester Film Capacitors.
Description
Features
- Non-Inductive
- Epoxy Dip Coated
- Subminiature Size
- RoHS directive compliant
Specifications
Specifications
| Operating Temperature | -55°C~ +85°C |
|---|---|
| Upper | 85°C |
| Climatic Category | 55/85/21 |
| Rated Voltage | 100VDC |
| Capacitance Range | 0.001μF to 2.2 μF |
| Capacitance Tolerance | ±5% |
| Voltage Proof | 1.4UR (5s) |
| Dissipation Factor | ≦1% (20℃, 1KHz) |
| I.R. | UR≦100V ≥15000MΩ ; CR≤0.33µF,≥5000s ; CR>0.33µF (20℃, 10V, 1 min) UR>100V ≥15000MΩ ; CR≤0.33µF≥5000s ; CR>0.33µF (20℃, 100V, 1 min). |

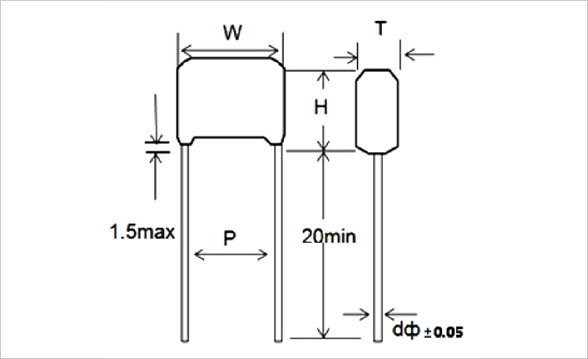

Drawing
Drawing
JFH - Subminiature Size Metallized Polyester Film Capacitors
