JFE – Mini Size Metallized Polyester Film Capacitors

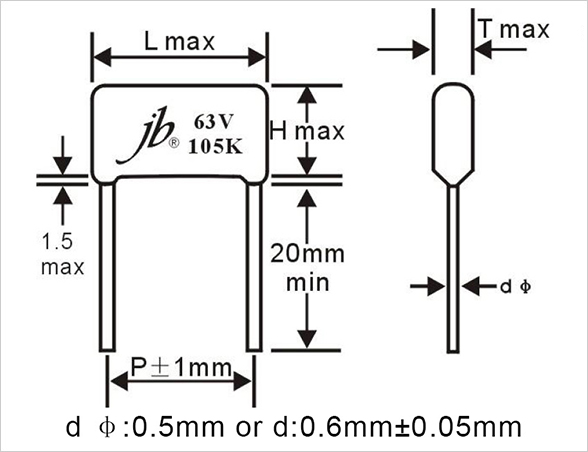

jb Capacitors manufactures Mini Metallized Polyester Film Capacitors. This series has a price advantage, and the small size compares favorably with stacked Metallized Polyester Capacitors. The following are the features, specifications, and drawing of Mini Metallized Polyester Film Capacitors.

Description

Features

Miniature size, non-inductive, epoxy dip coated.
The small size can be compared favourably with the stacked film capacitor.
Epoxy resin powder coating provides the identical outer appearance.
Low dissipation factor.
Excellent self-healing property and reliability.

Specifications

Operating Temperature	-40°C~ +85°C
Rated Voltage	50/63V, 100V, 250V, 400V, 630V.DC
Capacitance Range	0.001 ~ 3.3 μF
Capacitance Tolerance	±5%
Insulation Resistance	C≤0.33μF ≥3750MΩ ; C>0.33μF ≥1250S (20°C, 1min)
Dissipation Factor	≤1.0% (20°C, 1KHz)
