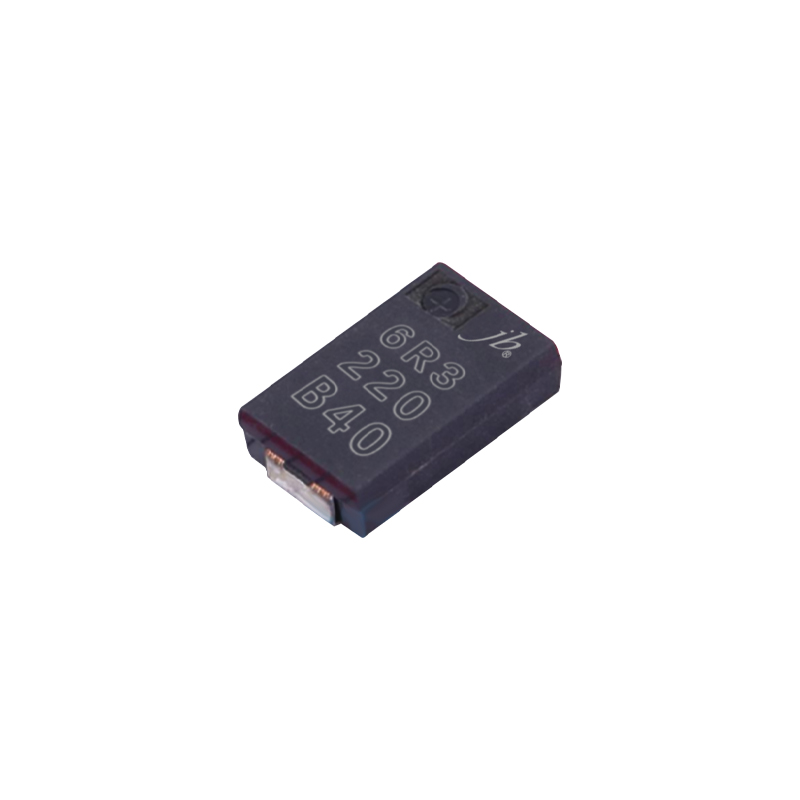

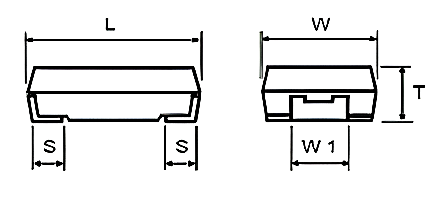

JEB – 2000H at 105°C Low ESR SMD Multilayer Solid Capacitor

jb Capacitors offers advanced SMD Multilayer Solid Capacitors with enhanced capacitance range and large ripple current capability. JEB series features extended capacitance up to 680μF, excellent low ESR characteristics, and long life at 105°C/2,000hrs. Following are JEB – SMD Multilayer Solid Capacitor features, applications, specifications and dimensions. We provide stable and compact solid capacitor solutions for high-density circuits.

Specifications

Category Temperature Range (°C)	-55°C ~ +105°C
Rated Voltage Range (V)	2V ~ 25VDC
Capacitance Tolerance (+20°C, 120Hz)	±20% (M) ; -35%~+10% (L) ; -10%~+20% (V) ; 0~+20% (A)
Leakage Current	≦ 0.1CV (Measured after 2 minutes at 20°C)
Dissipation Factor (20°C, 120Hz)	tanδ (Max.): 0.06 for 2V 0.08 for 2.5V ~ 25V
Low Temperature Characteristics (Max. Impedance Ratio)	Z(+105°C)/Z(+20°C) ≤ 1.25 Z(-55°C)/Z(+20°C) ≤ 1.25 (100kHz)
Endurance	After applying rated voltage for 2,000 hours at 105°C: Appearance: No significant damage Capacitance change: ≤ ±20% of the initial value D.F.(tanδ): ≤ 150% of the specified value ESR: ≤ 150% of the specified value Leakage current: ≤ The specified value
Damp Heat (Steady State)	After 500 hours at 60°C, 90%~95% RH: Capacitance change: +70% ~ -20% (2~2.5V); +60% ~ -20% (4V); +50% ~ -20% (6.3~7.5V); +40% ~ -20% (8~25V) D.F.(tanδ): ≤ 200% of the specified value Leakage current: ≤ The specified value
Surge Voltage	1,000 cycles at 105°C, with rated surge voltage: Appearance: No significant damage Capacitance change: ≤ ±20% of the initial value D.F.(tanδ): ≤ 150% of the specified value ESR: ≤ 150% of the specified value Leakage current: ≤ The specified value
