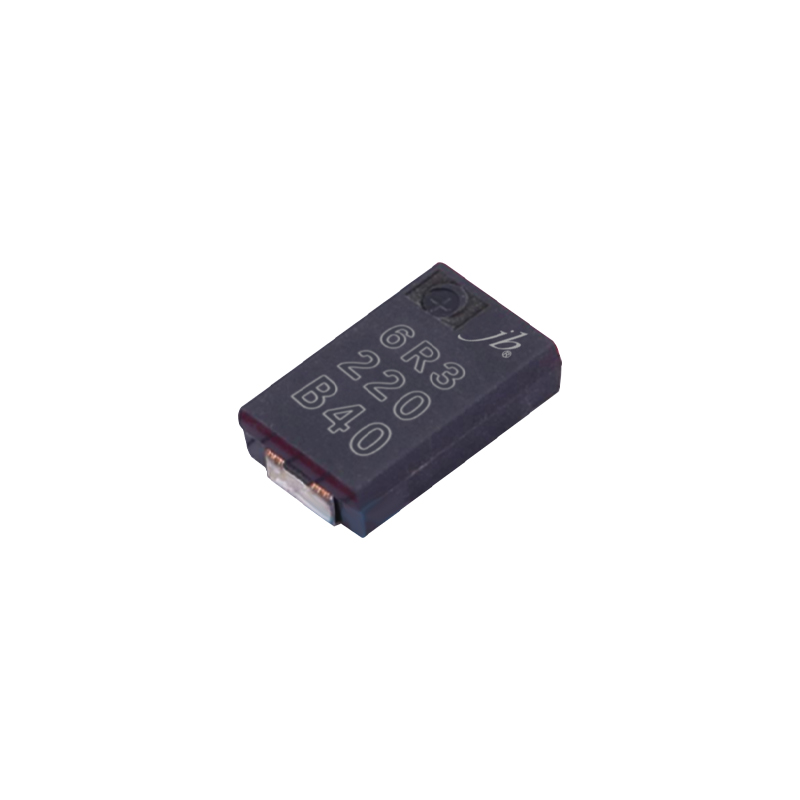

JEA – 2000H at 105°C Low ESR SMD Multilayer Solid Capacitor

jb Capacitors manufactures and markets SMD Multilayer Solid Capacitors featuring low ESR and high reliability. The JEA series is designed for space-saving applications and offers stable performance under high ripple currents. Below are the JEA – SMD Multilayer Solid Capacitor features, applications, specifications and dimensions. We supply high-quality SMD Solid Capacitors to meet your compact design requirements.

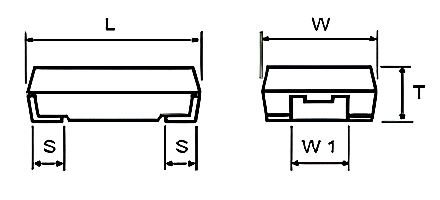

Specifications

Category Temperature Range (°C)	-55°C ~ +105°C
Rated Voltage Range (V)	2V ~ 25VDC
Capacitance Tolerance (+20°C, 120Hz)	±20% (M) ; -35%~+10% (L) ; -10%~+20% (V) ; 0~+20% (A)
Leakage Current	≦ 0.1CV (Measured after 2 minutes at 20°C)
Dissipation Factor (20°C, 120Hz)	tanδ (Max.): 0.06 for 2V 0.08 for 2.5V ~ 25V
Low Temperature Characteristics (Max. Impedance Ratio)	Z(+105°C)/Z(+20°C) ≤ 1.25 Z(-55°C)/Z(+20°C) ≤ 1.25 (100kHz)
Endurance	After applying rated voltage for 2,000 hours at 105°C: Appearance: No significant damage Capacitance change: ≤ ±20% of the initial value D.F.(tanδ): ≤ 150% of the specified value ESR: ≤ 150% of the specified value Leakage current: ≤ The specified value
Damp Heat (Steady State)	After 500 hours at 60°C, 90%~95% RH: Capacitance change: +70% ~ -20% (2~2.5V); +60% ~ -20% (4V); +50% ~ -20% (6.3~7.5V); +40% ~ -20% (8~25V) D.F.(tanδ): ≤ 200% of the specified value Leakage current: ≤ The specified value
Surge Voltage	1,000 cycles at 105°C, with rated surge voltage: Appearance: No significant damage Capacitance change: ≤ ±20% of the initial value D.F.(tanδ): ≤ 150% of the specified value ESR: ≤ 150% of the specified value Leakage current: ≤ The specified value
