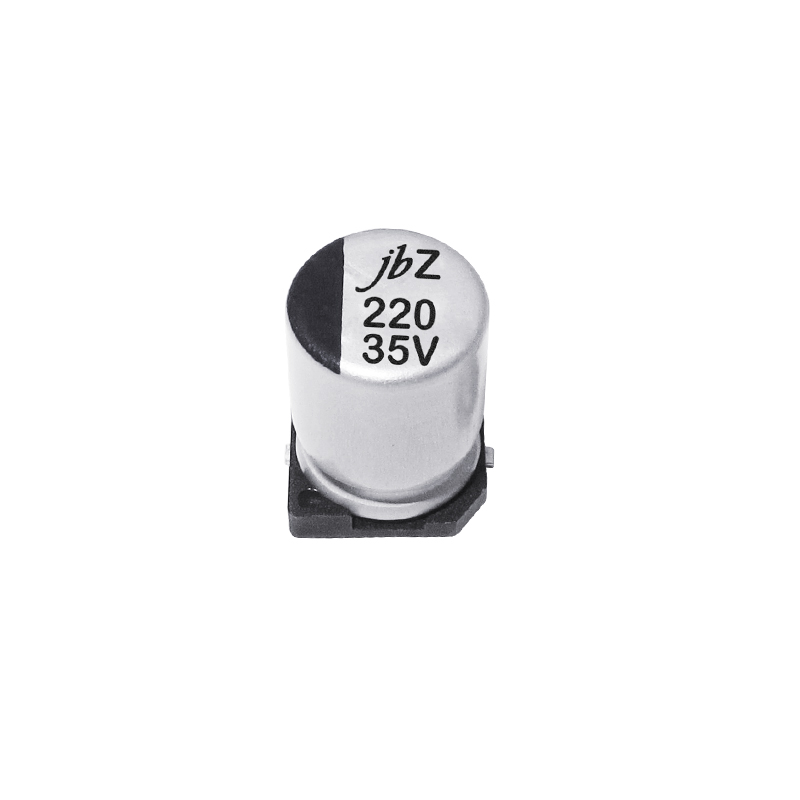

JCZ - 3000H at 105°C, Extra Lower Impedance SMD Aluminum Electrolytic Capacitors

JCZ – 3000H at 105°C, Extra Lower Impedance SMD Aluminum Electrolytic Capacitors

jb Capacitors manufactures SMD Aluminum Electrolytic Capacitor. JCZ 3000H at 105°C Chip Aluminum Electrolytic Capacitor is one of the most common series, we sell quite good prices, high quality and with short lead time. Following are 105 °C SMD Aluminum Electrolytic Capacitor features, specifications and drawing.

Specifications

Operating Temperature	-55°C~ +105°C
Voltage Range	6.3V ~ 50V.DC
Capacitance Range	4.7 ~ 4700μF
Capacitance Tolerance	±20% at 120Hz, 20°C
Leakage Current	Leakage current (Φ4~Φ10) ≤0.01CV or 3μA, whichever is greater (after 2 minutes application of rated voltage)Leakage current (Φ12.5~Φ16) ≤0.03CV or 4μA, whichever is greater (after 1 minutes application of rated voltage)
