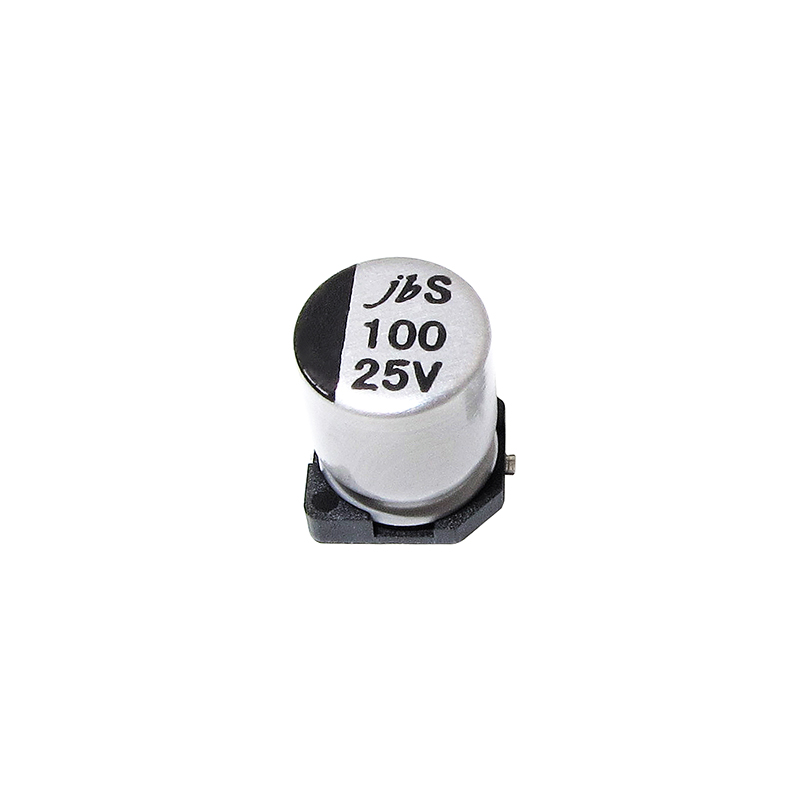

JCS – 2000H at 85°C SMD Aluminum Electrolytic Capacitors
jb Capacitors manufactures and markets SMD Aluminum Electrolytic Capacitors. The 2000-hour at 85°C Chip Aluminum Electrolytic Capacitor is one of the most common series. We offer competitive prices, high quality, and short lead times. The following are the features, specifications, and drawing of the 85°C SMD Aluminum Electrolytic Capacitor.
Description
Features
- Designed for surface mounting on high density circuit board.
- Emboss carrier tape packing system is available for automatic insertion.
Specifications
Specifications
| Operating Temperature | -40°C~ +85°C |
|---|---|
| Voltage Range | 4V ~ 100V.DC |
| Capacitance Range | 0.1 ~ 10000μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current | Leakage current (Φ4~Φ10) ≤0.01CV or 3μA, whichever is greater.(after 2 minutes application of rated voltage) Leakage current (Φ12.5~Φ16) ≤0.03CV or 4μA, whichever is greater.(after 1 minutes application of rated voltage) |
