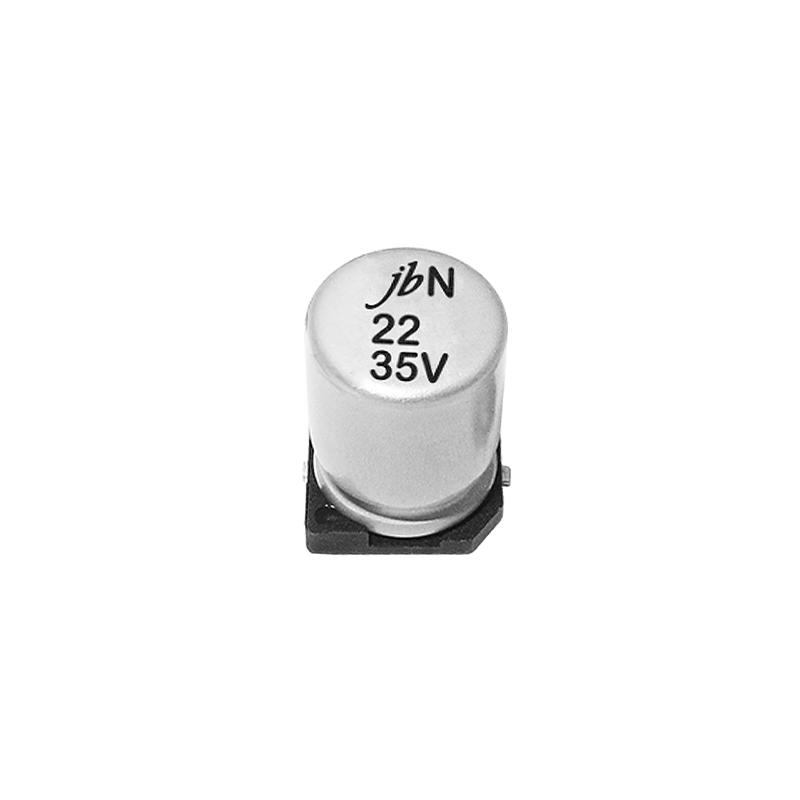

JCN – 1000H at 105°C, Bi-polar SMD Aluminum Electrolytic Capacitors
jb Capacitors manufactures SMD Aluminum Electrolytic Capacitor. JCN 1000H at 105°C Chip Aluminum Electrolytic Capacitor is one of the most common series, we sell quite good prices, high quality and with short lead time. Following are 105 °C SMD Aluminum Electrolytic Capacitor features, specifications and drawing.
Description
Features
- Bi-polar with general temperature+105°C.
- Load life of 1000 hours.
Specifications
Specifications
| Operating Temperature | -40°C~ +105°C |
|---|---|
| Voltage Range | 6.3V ~ 50V.DC |
| Capacitance Range | 0.1 ~ 100μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current | Leakage current≤ 0.005CV or 10μA, whichever is greater (after 2 minutes application of rated voltage) |
