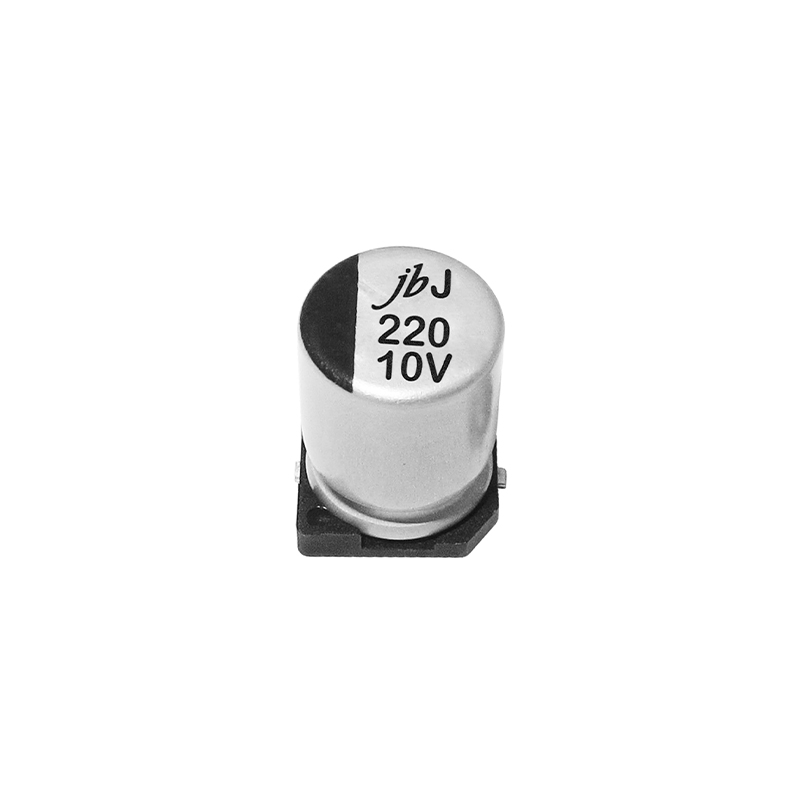

JCJ – 2000H at 105°C SMD Aluminum Electrolytic Capacitors
jb Capacitors manufactures SMD Aluminum Electrolytic Capacitor. JCJ 2000H at 105°C Chip Aluminum Electrolytic Capacitor is one of the most common series, we sell quite good prices, high quality and with short lead time. Following are 105 °C SMD Aluminum Electrolytic Capacitor features, specifications and drawing.
Description
Features
- Extra low impedance with temperature range -40~+105°C.
- ±20% at 120Hz, 20℃
- Comply with the RoHS directive.
Specifications
Specifications
| Operating Temperature | -40°C~ +105°C |
|---|---|
| Voltage Range | 10V ~ 16V.DC |
| Capacitance Range | 220μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current | Leakage current ≤0.01CV or 3μA, whichever is greater (After 2 minutes application of rated voltage) |
