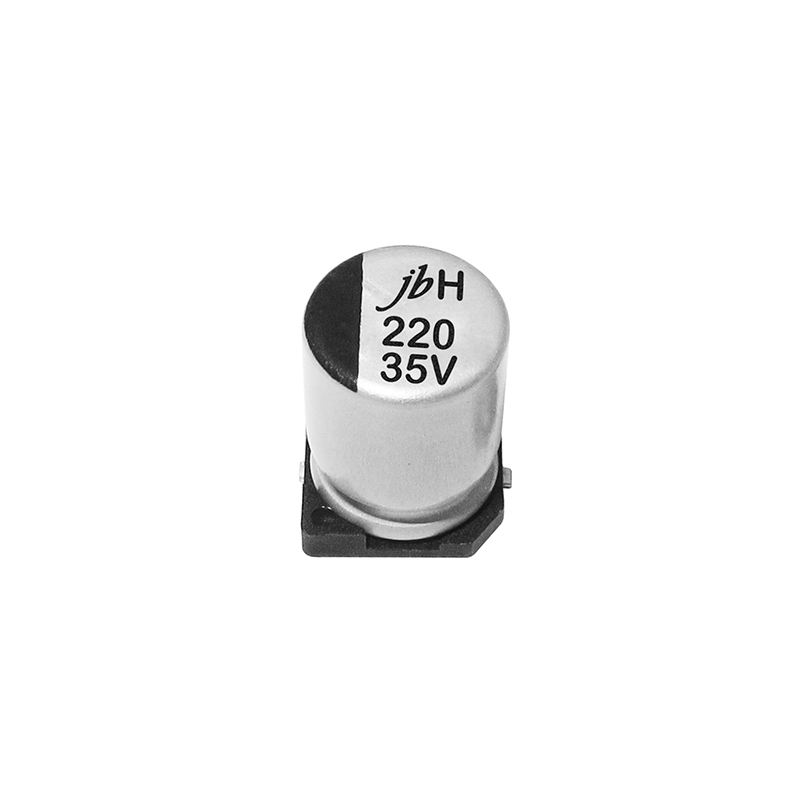

JCH – 1000H to 2000H at 125°C, Long Life Assurance SMD Aluminum Electrolytic Capacitors
jb Capacitors manufactures SMD Aluminum Electrolytic Capacitor. JCH 1000H to 2000H at 125°C Chip Aluminum Electrolytic Capacitor is one of the most common series, we sell quite good prices, high quality and with short lead time. Following are 125°C SMD Aluminum Electrolytic Capacitor features, specifications and drawing.
Description
Features
- Life time 125℃ 1000H to 2000H standard product
- High stability and reliability
- Reflow soldering is available
- Available for high densify surface mounting
- Comply with the RoHS directive.
Specifications
Specifications
| Operating Temperature | -40°C~ +125°C |
|---|---|
| Voltage Range | 10V ~ 450V.DC |
| Capacitance Range | 3.3 ~ 2200μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current | 10V ~ 100V.DC, I≤ 0.03CV (μA) or 4 (μA)whichever is greater (after 2 minutes); 160V ~ 450V.DC I≤ 0.04CV + 100 (μA) (after 2 minutes) |
