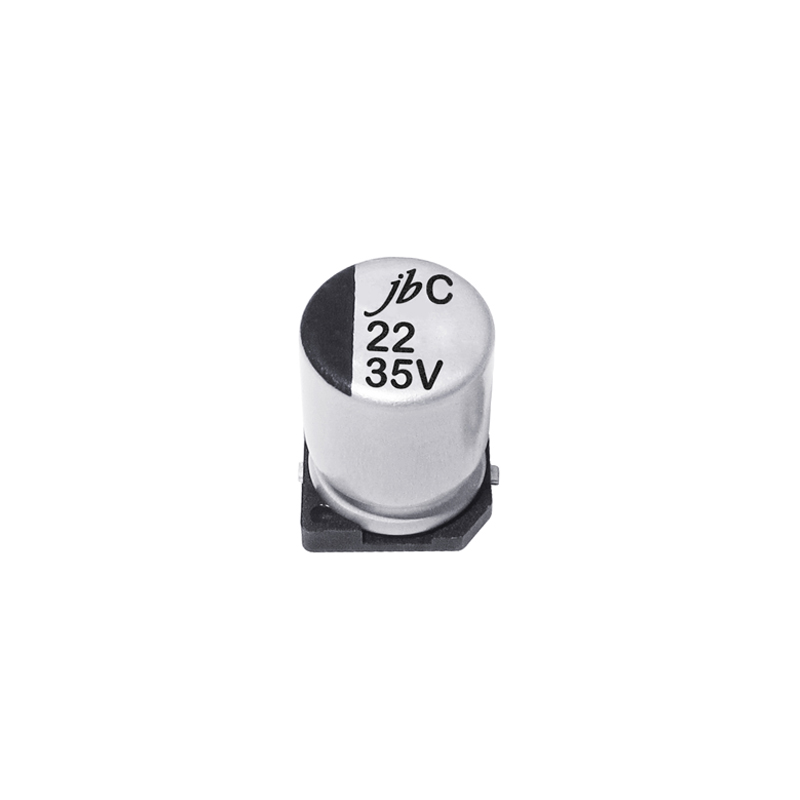

JCC – 2000H at 105°C, Low Leakage SMD Aluminum Electrolytic Capacitors
jb Capacitors manufactures SMD Aluminum Electrolytic Capacitors. The JCC 2000H at 105°C Chip Aluminum Electrolytic Capacitor is one of the most common series. We offer competitive prices, high quality, and short lead times. The following are the features, specifications, and drawing of the 105°C SMD Aluminum Electrolytic Capacitor.
Description
Features
- Low leakage current (0.5~3.3μA max.)
- Low cost for replacement of some tantalum applications.
- Comply with the RoHS directive
Specifications
Specifications
| Operating Temperature | -40°C~ +105°C |
|---|---|
| Voltage Range | 6.3V ~ 50V.DC |
| Capacitance Range | 0.1 ~ 220μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current | Leakage current≤0.002CV or 0.5μA, whichever is greater(after 2 minutes’ application of rated voltage) |
