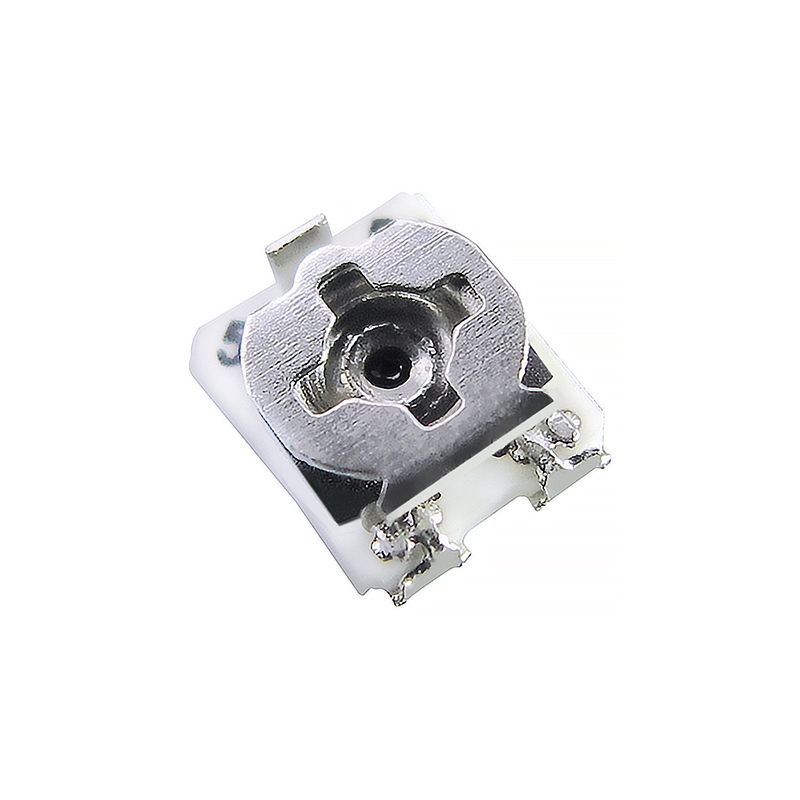

JBR-C3305 with Rotation Stopper Trimming Potentiometers

The JBR-C3305 trimming potentiometer is a low-profile multi-turn component with a height of just 1.2mm, making it ideal for compact and high-density circuit applications. It includes a rotation stopper for precise adjustment control and is fully reflow solderable for streamlined assembly.

Engineered with metal-glaze film technology, the JBR-C3305 ensures excellent endurance and long-term reliability. RoHS-compliant and space-efficient, it’s a top choice for modern electronic designs requiring precision and durability.

Datasheet

Add to wishlist

Add to quote

Description
Specifications

Description

Features

Reflow solderable.
With rotation stopper.
Low profile type (1.2mm in height).
Conform to RoHS Directives.
Achieved excellent endurance characteristics by using Metal-glaze film.

Specifications

Standard Resistance Range	100Ω to 1MΩ
Resistance Tolerance	± 25%
Total Mechanical Rotation Angle	270°± 20°
Max. Working Voltage	50V or V=√PR (Whichever is smaller)
Rated Wattage	0.15Watt
Temperature Range	-40℃ to +100℃
Temperature Coefficient	± 250ppm/℃
Rotational Torque	0.98mN·m ~ 11.76mN·m
End Stop Strength	14.7 mN·m (Min.)
Standard Packing	2500 PCS / REEL
Cleaning	Aqueous cleaning not recommended
