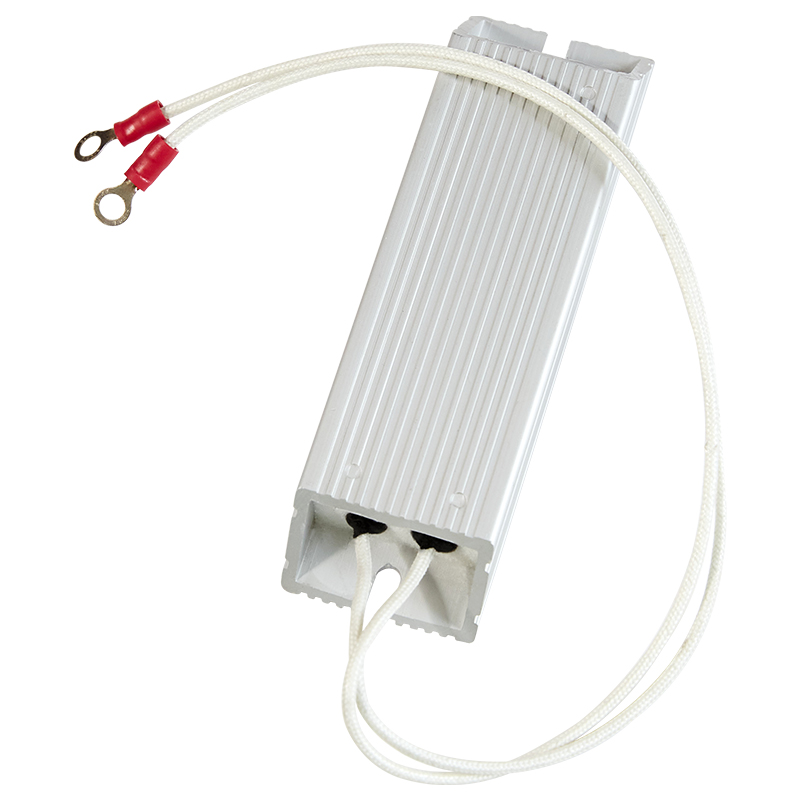

JBR-BS Wirewound Resistor
The JBR-BS Wirewound Resistors are designed for high-power applications, offering a wide resistance range of 0.01Ω to 82KΩ with a precision tolerance of ±1% to ±5%. Built to handle demanding environments, they support voltage ratings up to 2000V, ensuring reliable performance in industrial and heavy-duty scenarios. With a power capacity ranging from 50W to 5000W, the JBR-BS series is ideal for applications requiring robust and stable resistance adjustments.
Description
Features
- Power range: 50W ~ 5000W
- Resistance range: 0.01Ω ~ 82KΩ
- High voltage capacity: Up to 2000V
- Temperature stability with TCR: ±100, ±50 ppm/°C
- Durable construction for high-power applications
Specifications
Specifications
| Power Rating | Dimensions (mm) |
|---|---|
| 50W | W: 40, H: 20, L2: 100, L1: 72 |
| 75W | W: 40, H: 20, L2: 110, L1: 80 |
| 100W | W: 40, H: 20, L2: 115, L1: 87 |
| 120W | W: 40, H: 20, L2: 165, L1: 135 |
| 150W | W: 40, H: 20, L2: 185, L1: 155 |
| 150W | W: 60, H: 30, L2: 125, L1: 90 |
| 200W | W: 40, H: 20, L2: 215, L1: 185 |
| 200W | W: 60, H: 30, L2: 165, L1: 125 |
| 300W | W: 60, H: 30, L2: 215, L1: 175 |
| 400W | W: 60, H: 30, L2: 265, L1: 225 |
| 500W | W: 60, H: 30, L2: 285, L1: 245 |
| 600W | W: 60, H: 30, L2: 300, L1: 260 |
| 800W | W: 60, H: 30, L2: 330, L1: 290 |
| 800W | W: 50, H: 107, L2: 210, L1: 170 |
| 1000W | W: 60, H: 30, L2: 385, L1: 345 |
| 1000W | W: 50, H: 107, L2: 300, L1: 260 |
| 1500W | W: 50, H: 107, L2: 400, L1: 360 |
| 2000W | W: 50, H: 107, L2: 450, L1: 410 |
| 2500W | W: 50, H: 107, L2: 485, L1: 445 |
| 3000W | W: 50, H: 107, L2: 550, L1: 510 |
| 4000W | W: 50, H: 107, L2: 650, L1: 610 |
| 5000W | W: 50, H: 107, L2: 750, L1: 710 |
