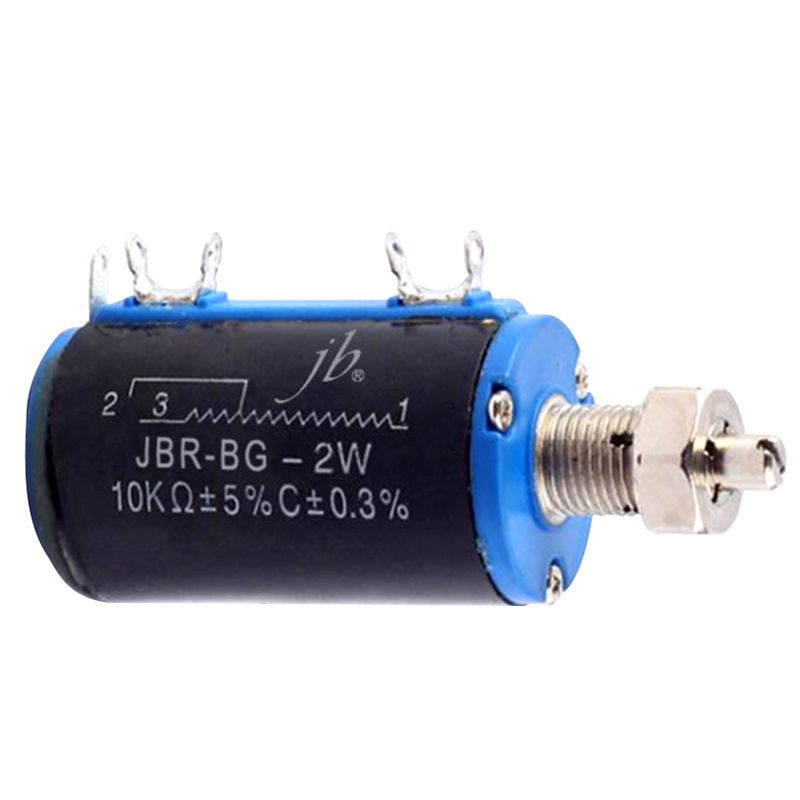

JBR-BG Lock Type Wirewound Potentiometers
The JBR-BG (Lock type) Wire-wound Potentiometers offer reliable and precise resistance adjustments, covering a range of 100Ω to 47KΩ with a tolerance of ±5%. Designed to handle industrial demands, they operate with a 160V voltage rating and provide stable performance even in challenging environments. Featuring a 3600° mechanical travel and lock type mechanism, the JBR-BG series ensures accurate and secure adjustments, ideal for high-precision industrial applications.
Description
Features
- Resistance range: 100Ω ~ 47KΩ
- Precise adjustments with ±0.3% linearity
- Rated power: 2W (85°C)
- Durable with 3600° mechanical travel
- Reliable voltage rating of 160V
Specifications
Specifications
| Standard Resistance Range | 100Ω ~ 47KΩ |
|---|---|
| Resistance Tolerance | ±5% |
| Independent Linearity | ±0.3% |
| Rated Power | 2W (85°C) |
| Voltage Rating | 160V |
| Total Mechanical Travel | 3600° ± 10° |
| Starting Torque | 3.5-100mN·m |
