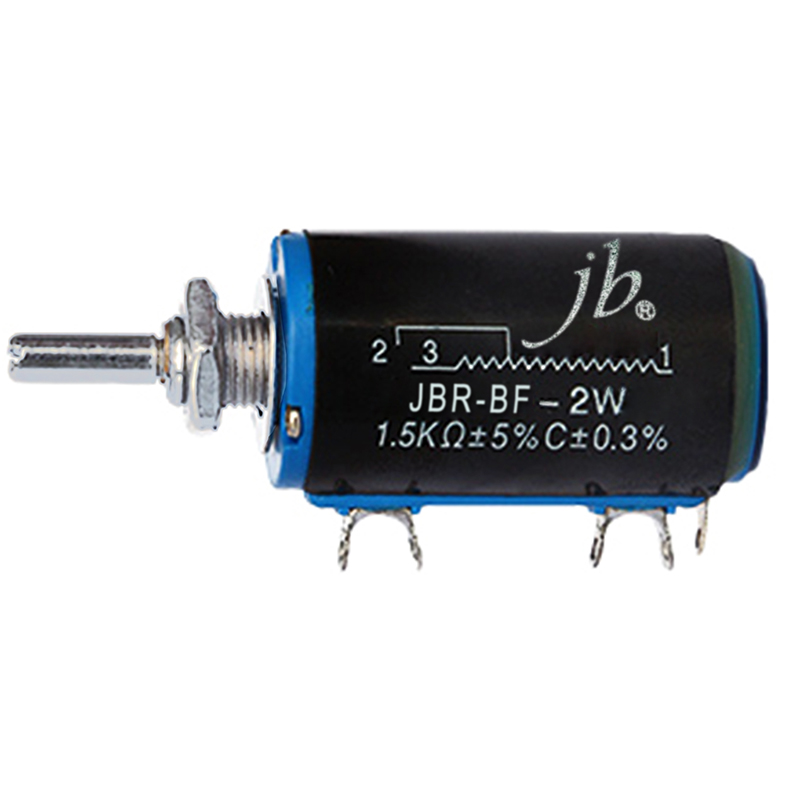

JBR-BF Wirewound Potentiometers

The JBR-BE Wire-wound Potentiometers provide precise resistance adjustments with a range of 100Ω to 47KΩ and a ±5% tolerance. Designed for durability, they handle temperatures up to 85°C with a robust construction that supports a full 3600° mechanical travel. Ideal for demanding environments, this model ensures reliable performance under consistent use.

Features

Resistance range: 100Ω ~ 47KΩ
High precision with independent linearity of ±0.3%
Rated power of 2W, suitable for temperatures up to 85°C
Wide mechanical travel of 3600° for accurate adjustments
Reliable voltage rating of 160V
Smooth operation with starting torque between 3.5-100mN·m

Standard Resistance Range	100Ω ~ 47KΩ
Resistance Tolerance	±5%
Independent Linearity	±0.3%
Rated Power	2W (85°C)
Voltage Rating	160V
Total Mechanical Travel	3600° ± 10°
Starting Torque	3.5-100mN·m

Standard Resistance Range

100Ω ~ 47KΩ

Resistance Tolerance

±5%

Independent Linearity

±0.3%

Rated Power

2W (85°C)

Voltage Rating

160V

Total Mechanical Travel

3600° ± 10°

Starting Torque

3.5-100mN·m
