JBR-BB Wirewound Potentiometers

The JBR-BB Trimming Potentiometers deliver accurate resistance adjustments within a range of 100Ω to 100KΩ, with a tolerance of ±5%. Designed for durability, they operate in temperatures from -55°C to +125°C and have a robust 3600° mechanical travel. These potentiometers are well-suited for industrial settings, handling high vibrations, impacts, and extreme conditions efficiently.

Specifications

Standard Resistance Range (Ω)	100Ω ~ 100KΩ
Resistance Tolerance	±5%
Independent Linearity	±0.25%
Terminal Resistance	≤0.2%R or 5Ω
Contact Resistance Variation (CRV)	≤3%R or 3Ω
Insulation Resistance	R12 ≥ 1GΩ
Withstand Voltage	101.3kPa 710V, 8.5kPa 470V
Rated Power	2W (315V max)
Effective Electrical Travel	≥3600° -10°
Temperature Range (°C)	-55°C ~ +125°C
Temperature Coefficient	±100ppm/°C
Temperature Variation	ΔR ≤ ±2%R, ΔUab/Uac ≤ ±1%R
Collision	390m/s², 4000 times: ΔR ≤ ±1%R
Vibration	10-500Hz, 0.75mm or 98m/s²/6h: ΔUab/Uac ≤ ±2%R
Climate Category	ARS+ 39R, R12 ≥ 100MΩ
Electrical Endurance	70°C, 2W, 1000h: ΔR ≤ ±3%R
Mechanical Endurance	10000 cycles: ΔR ≤ ±3%R
Steady Damp-Heat	ΔR ≤ 3%R, R12 ≥ 100MΩ
Mounting Surface Height	1.125 ±0.031 in (28.58 ±0.79 mm)
Body Diameter (Dim. A)	0.625 ±0.016 in (15.88 ±0.41 mm)
Shaft Length (Dim. B)	0.187 ±0.016 in (4.75 ±0.41 mm)
Overall Length (Dim. C)	0.080 ±0.016 in (2.03 ±0.38 mm)
Slot Width	0.032 ±0.005 in (0.81 ±0.13 mm)
Slot Depth	0.254 ±0.010 in (6.45 ±0.25 mm)

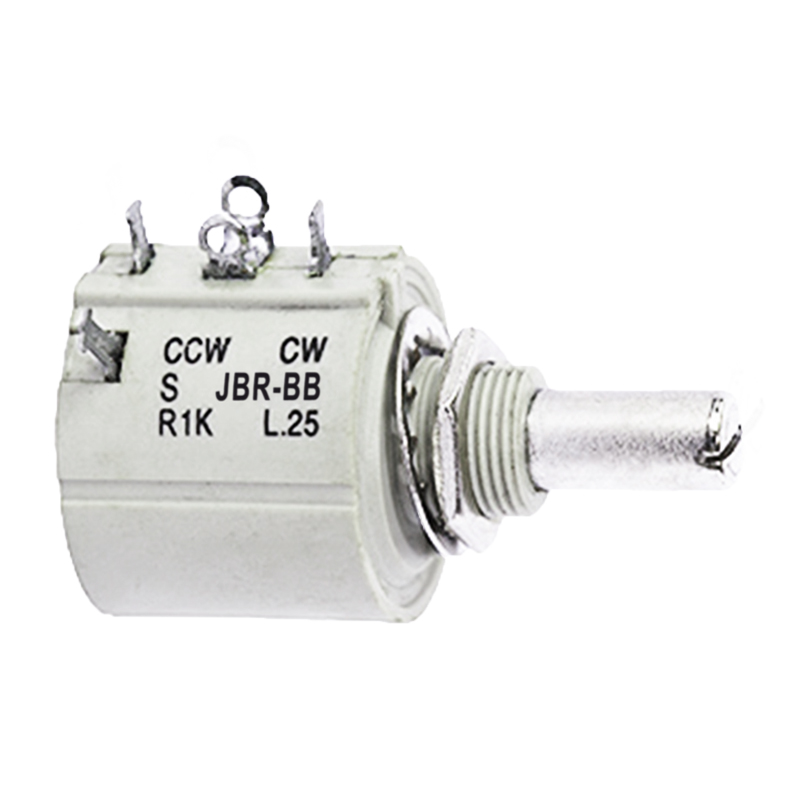

JBR-BB Wirewound Potentiometers by jb Capacitors, offering precise resistance adjustments from 100Ω to 100KΩ
