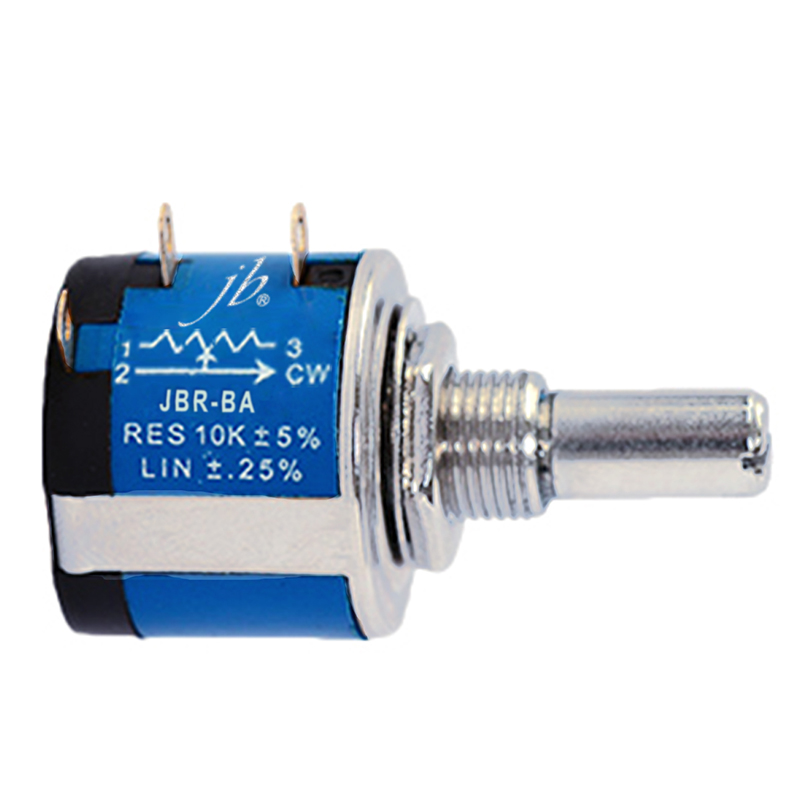

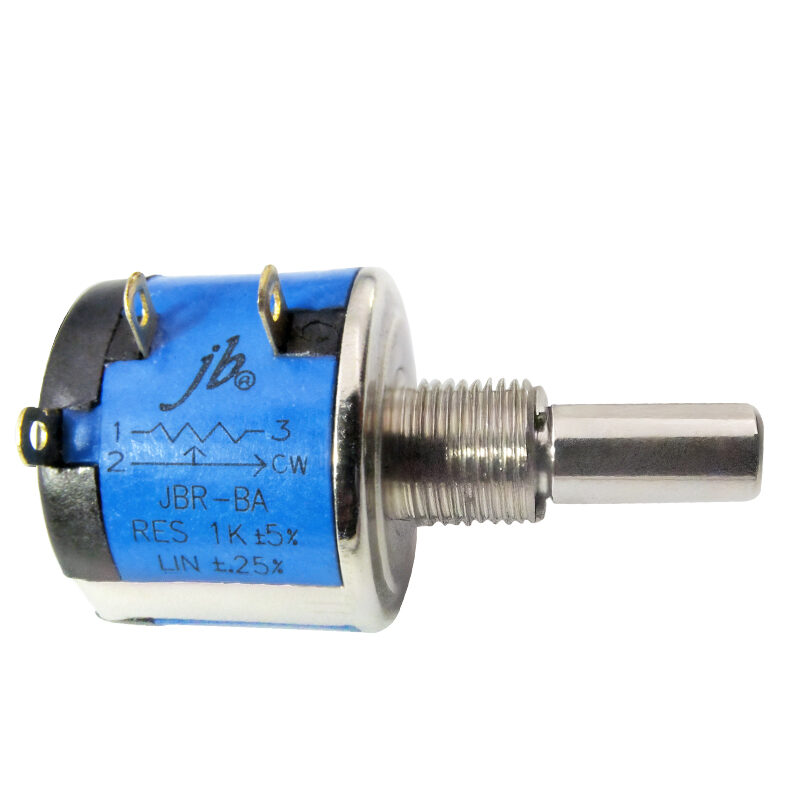

JBR-BA Wirewound Potentiometers
The JBR-BA Trimming Potentiometers offer precise and reliable resistance adjustments, with a range of 10Ω to 100KΩ and ±5% tolerance. Built to perform in extreme temperatures (-55°C to +125°C), they feature durable construction and 3600° mechanical travel. Perfect for industrial applications, the JBR-BA series handles vibrations, collisions, and demanding conditions with ease.
Description
Features
- Resistance range: 10Ω ~ 100KΩ
- High stability in extreme temperatures (-55°C ~ +125°C)
- Durable with mechanical endurance of 1000 cycles
- Precision with independent linearity of ±0.25%
- Robust construction, able to handle collisions and vibrations effectively
Specifications
Specifications
| Standard Resistance Range | 10Ω ~ 100KΩ |
|---|---|
| Resistance Tolerance | ±5% |
| Independent Linearity | ±0.25% |
| Terminal Resistance | ≤0.2% or 5Ω |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω |
| Insulation Resistance | R12 ≥ 1GΩ |
| Withstand Voltage | 101.3kPa 500V, 8.5kPa 470V |
| Rated Power | 2W (315V max) |
| Effective Electrical Travel | ≥3600° -10° |
| Temperature Range | -55°C ~ +125°C |
| Temperature Coefficient | ±250, ±100ppm/°C |
| Temperature Variation | ΔR ≤ ±2%R, ΔUab/Uac ≤ ±1%R |
| Collision | 390m/s², 4000 times: ΔR ≤ ±1%R |
| Vibration | 10-500Hz, 0.75mm or 98m/s²/6h: ΔUab/Uac ≤ ±2%R |
| Climate Category | ARS+ 39R, R12 ≥ 100MΩ |
| Electrical Endurance | 70°C, 2W, 1000h: ΔR ≤ ±3%R |
| Mechanical Endurance | 1000 cycles: ΔR ≤ ±3%R |
| Steady Damp-Heat | ΔR ≤ 3%R, R12 ≥ 100MΩ |
| Total Mechanical Travel | 3600° ± 10° |
| Starting Torque | ≤ 36N·m |
| Clutch Torque | ≤ 300N·m |
| Diameter | Φ 22.20 mm |
| Height | 18.2 mm (excluding shaft) |
| Shaft Length | 20.8 mm |
| Shaft Diameter | 6.35 mm |
| Mounting Thread | M9X0.75 |
| Shaft Travel | 0.5 x 45° (angle) |
