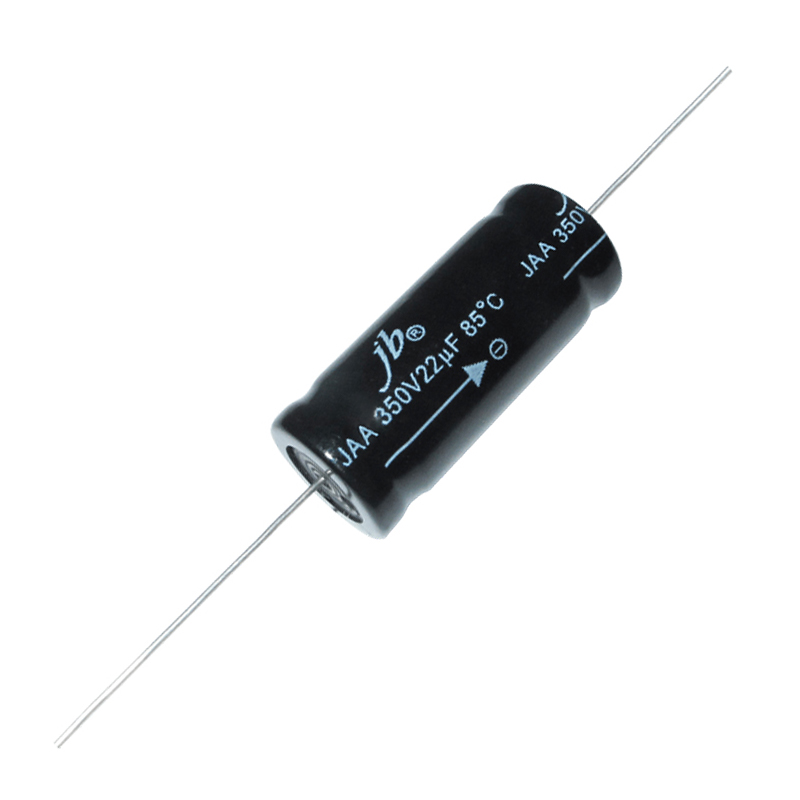

JAA – 2000H at 85°C, Axial Aluminum Electrolytic Capacitors (Low Leakage)

jb Capacitors manufactures and markets Axial Aluminum Electrolytic Capacitors with a miniaturized size and wide temperature range. The following are the features, specifications, and dimensions of the JAA 2000H at 85°C Axial Aluminum Electrolytic Capacitor. We supply high-quality Axial Aluminum Electrolytic Capacitors to you.

Add to wishlist

Description

Features

Load life of 2000 hours at 85°C
Low Leakage Current
2 Rubber Types
For general purpose application
RoHS Directive Compliant

Specifications

Specifications

Items	Performance Characteristics
Operating Temperature Range (°C)	-40℃~+85℃
Capacitance Tolerance (20°C, 120Hz)	±20%
Leakage Current (μA)	I ≤ 0.02CV or 3 (µA) Whichever is greater (after 2 minutes applying the rated DC working Voltage at 20 ℃)

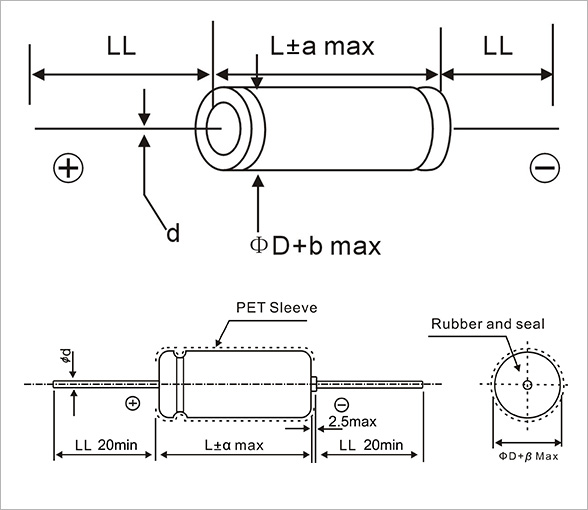

Drawing

dimensions-JAA

jb-JAA-JAB-Sereis-Drawing
