To meet market needs, we release new JCJ series SMD E-cap, it is special designed for LED display screen application, only few factory can produce such SMD E-cap.
We have very good support, if you use this SMD E-cap, please contact us asap.

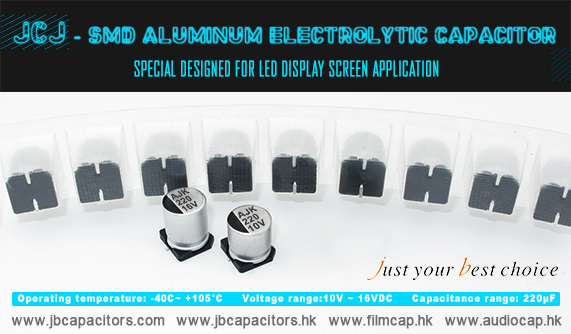

JCJ – 2000H at 105C, Extra Lower Impedance SMD Aluminum Electrolytic Capacitor
Features:
•Extra low impedance with temperature range -40~+105C.
•+/-20% at 120Hz, 20C
•Comply with the RoHS directive.
Specification:
Operating temperature -40C~ +105C
Voltage range:10V ~ 16VDC
Capacitance range:220μF
Capacitance Tolerance:+/-20% at 120Hz, 20C
Leakage Current: Leakage current ≤0.01CV or 3uA, whichever is greater
(After 2 minutes application of rated voltage)
